Mercedes A4108100014 - ZB HALTER

S 417 HDH 629.422

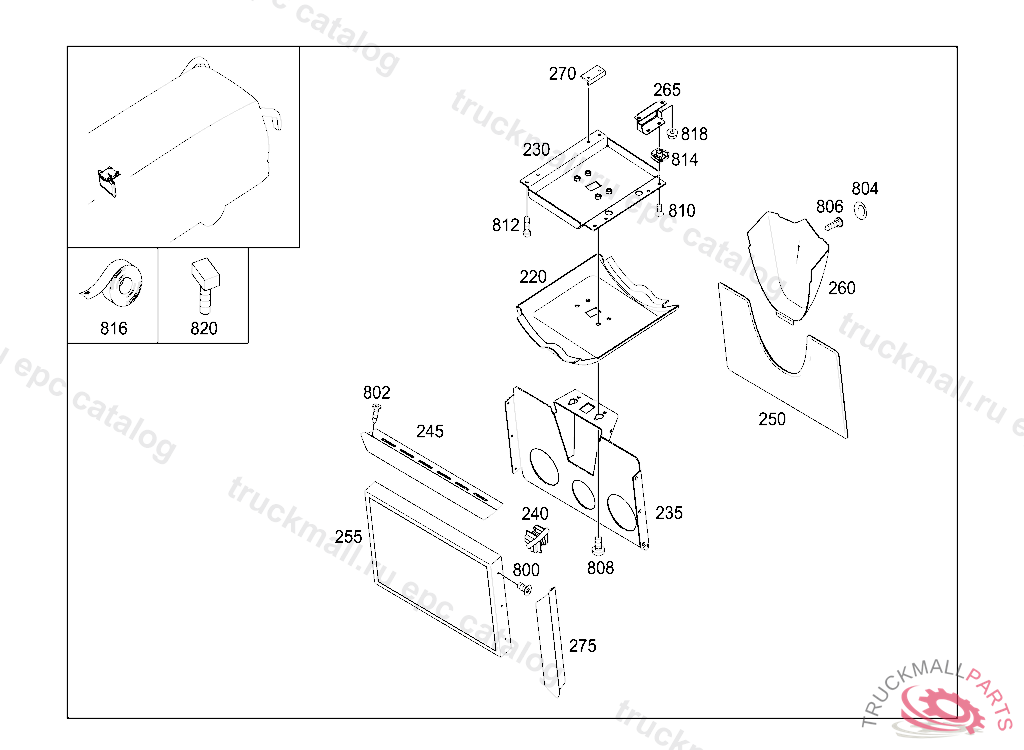

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 4

Поз.
Артикул
Описание
220
A6298144125
PANELLING
230
A6298101813
BRACKET
235
A4108100014
BRACKET
240
A4108250075
ORNAMENTAL COVER
245
A4108270024
FRAME
250
A4108141225
PANELLING
255
A0058206289
MONITOR
260
A4108141125
PANELLING19"
265
A6298151014
BRACKET
270
A6298151114
BRACKET
275
A4108270124
FRAME
800
A0029901020
SCREW
802
N000000002696
SCREW MOUNTING, SUPPORT PLATE 3X10
804
A0009876945
CAP
806
A0019905036
SHEET METAL SCREW42X16
808
N000000001152
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
810
A0019909920
SCREWM6X12 TX30
812
A0039909012
SCREW PRESSURE SENSOR M6X20 TX30 TO A 003 431 62 06
814
A0049941445
LOCK NUT. LOCK PANELLING TO BUMPER
816
A0009870822
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
816
A6299760132
STOP
818
N910112006001
NUT , Replaced By: N913023006001
818
A0039908512
CAPSCREW W HEXAL. DRIVEM5X20
820
N000000003337
WASHER
820
A0009900008
T-SCREWM 6X16
