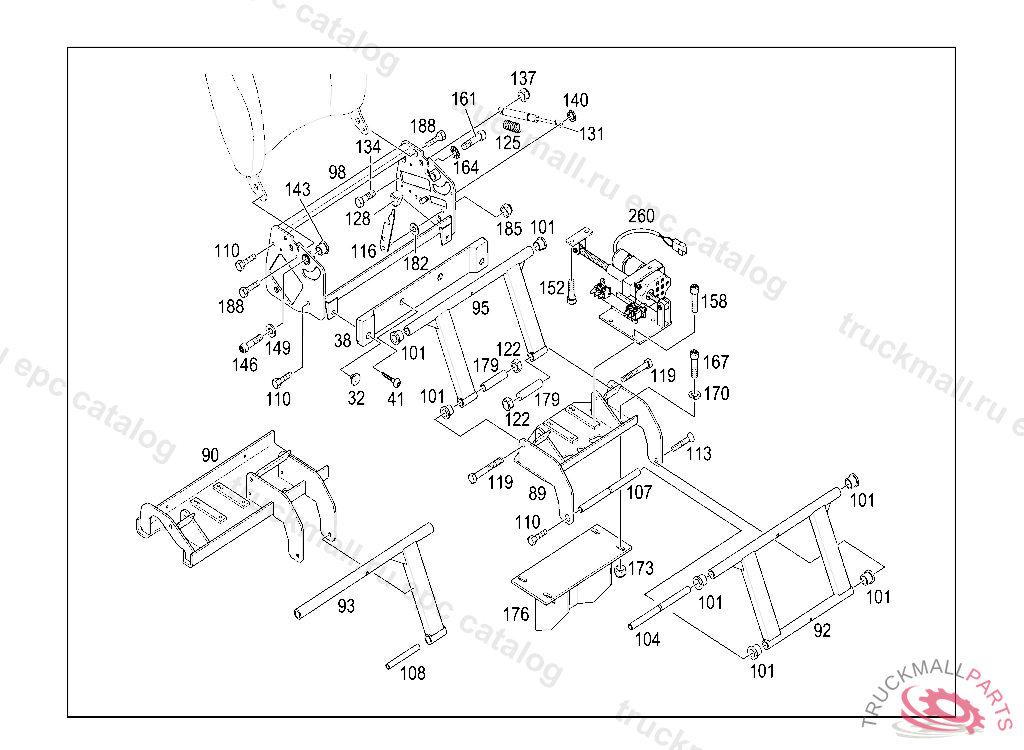

Поз.
Артикул
Описание
32
GUIDE ON SIDE OF AISLE AND ON SIDE OF WALL
38
COVERING
41
TAPPING SCREW3.5X16
89
SEAT CUSHION FRAME
90
SEAT CUSHION FRAME
92
FRAME PART FRONT
93
FRAME PART FRONT
95
FRAME PART REAR
95
FRAME PART
98
FRAME LEFT
101
BUSHING
104
TUBE
107
TUBE
108
TUBE
110
SCREW
113
SCREWM8X25
116
LEVER LEFT
119
SCREWM8X70
122
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
TENSION SPRING
125
SPRING TENSION SPRING
128
HANDLE
131
GAS SPRING
134
HEXAGON HEAD BOLT. SCREW CONSOLE TO COWL AND TO ROOF
137
NUT HEATING PIPE TO BRACKET
140
LOCK RING SLIDE TO RETAINING RAIL
143
BUSHING
146
SCREW GRIP RAIL MOUNTING M8X25 TX45
149
WASHER PUMP TO CONSOLE
152
SCREW
158
SCREWM 8X12
161
SCREW
164
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
167
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
167
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
167
SCREW BRACKET TO CONSOLE
170
SERRATED WASHER HORN MOUNTING, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
173
HEXAGON NUT STARTING MOTOR TERMINAL 31
176
SUPPORT
179
TUBE
182
WASHER8,1X16X2MM
185
NUT HORN TO BRACKET M8
188
SWITCH MICRO-SWITCH
188
SWITCH
260
ELECTRIC MOTOR
999
DRIVE SHAFT
999
SPINDLE
999
GEAR
