Mercedes A0004774308 - ОТРАЖАТЕЛЬ

S 416 HDH 629.425

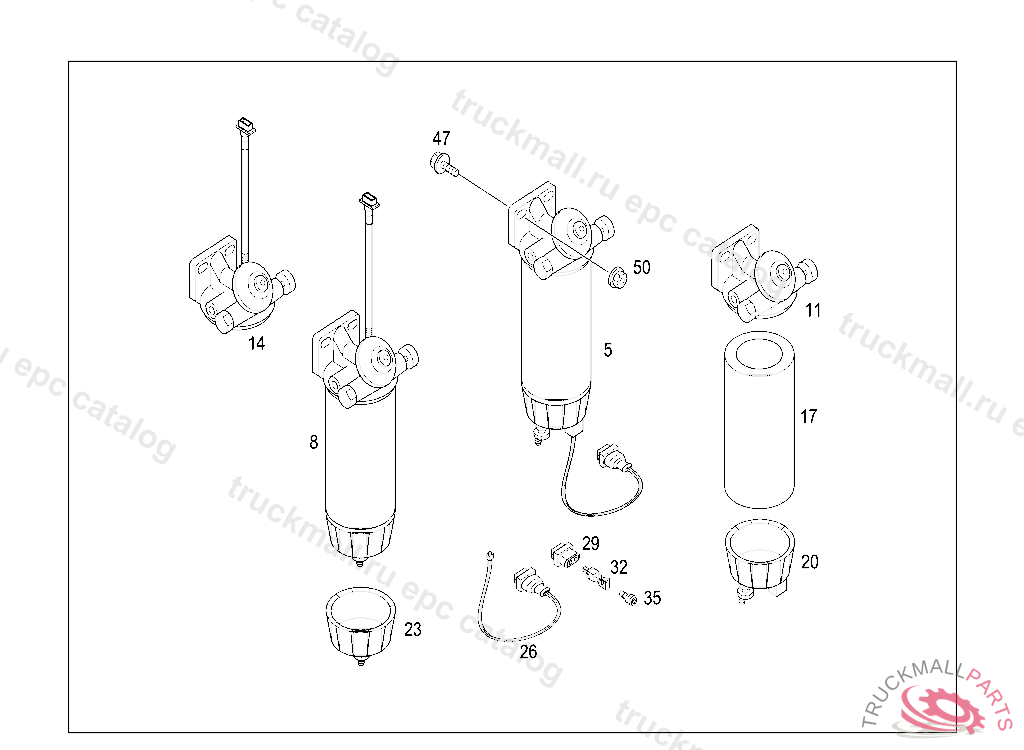

47 FUEL SYSTEM - 150 FUEL PRE-FILTER AND MAIN FILTER,HAND PUMP

Поз.
Артикул
Описание
5
A0004700069
SEPARATOR WATER SEPARATOR, Replaced By: A0004700469, +001A9304700181, +001A9304750240
8
A0004700469
SEPARATOR (WATER SEPARATOR), TO BE ADAPTED DURING ASSEMBLY
11
A0004774308
FILTER HEAD , UNTIL PRODUCTION BREAKPOINT DATE 08/02
14
A0004774508
FILTER HEAD. COVER
17
A0004771302
FUEL FILTER
20
A0004772016
FILTER BOWLTO 000 470 00 69
23
A0004772516
FILTER BOWL
26
A9405460014
ELECTRIC CABLETO 000 470 00 69
29
A0305454428
PLUG HOUSING. PLUG BIPOLAR
32
A0355458328
PLUG
35
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
47
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
50
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
