Mercedes A0049974290 - BINDER

S 416 HDH 629.425

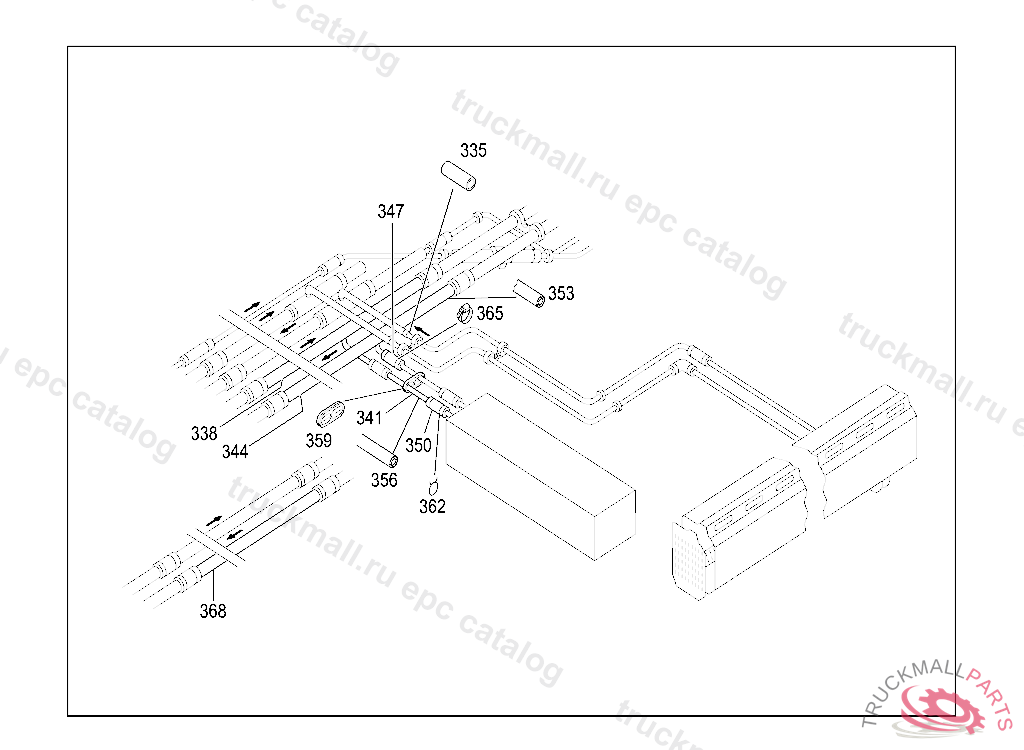

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 7

Поз.
Артикул
Описание
335
A3028320396
GROMMET
338
A6298304815
PIPE LINE FEED
341
A6298324722
PIPE LINED12/170MM
344
A6298305015
PIPE LINE RETURN
347
A0249974082
RADIATOR HOSE. HOSED14,5X23,5X100MM, Replaced By: N000000004960
350
A0269975382
HOSE12X21X80MM, Replaced By: N000000004942
353
A0008324923
INSULATING HOSE28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
356
A0008326823
HOSE 1500 LG.
359
A0008320896
GROMMET
362
A0049974290
HOSE CLAMP. HOSE CLAMP LESS TOILET 20-21MM, Replaced By: N000000000666
365
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
368
A6298326118
PIPE LINE WITHOUT DRIVER SLEEPING ROOM HEATER D28/1420MM
