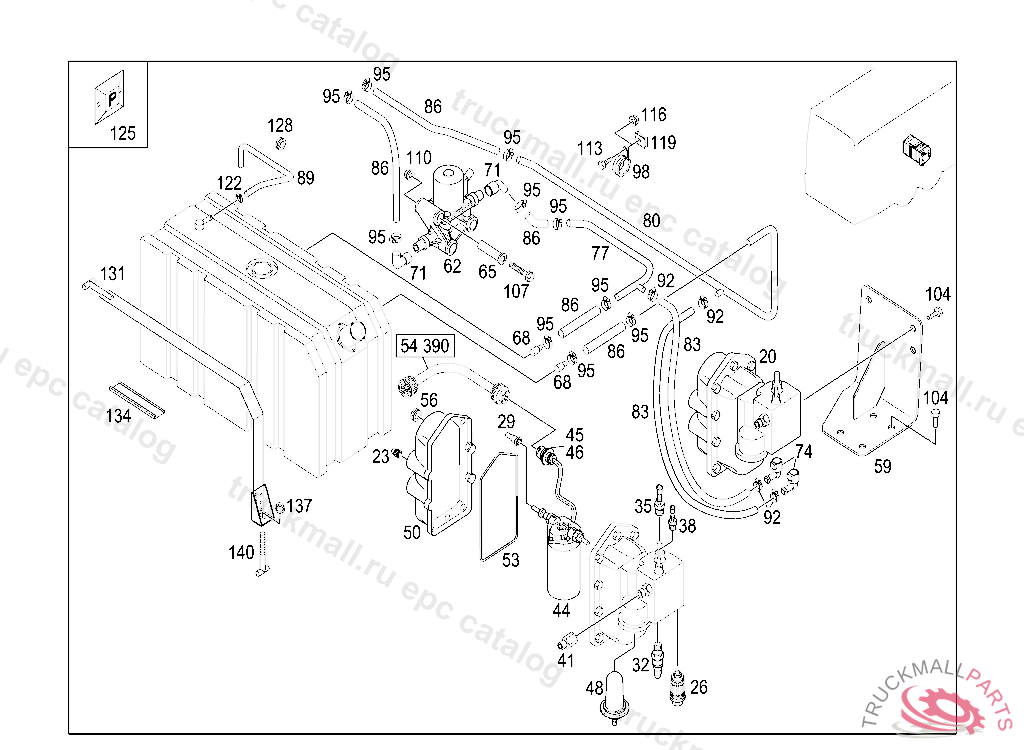

Поз.
Артикул
Описание
20
PUMP MODULE , Replaced By: A0001402578
20
PUMP MODULE (UREA DELIVERY PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
20
PUMP MODULE , Replaced By: A0001400578
23
VALVE CRANKCASE BREATHER
26
FILTER ELEMENT WITH COVER, Replaced By: A0001420289
26
FILTER ELEMENT WITH COVER
29
STRAINER ON SUCTION SIDE
32
FITTING COOLING WATER INLET/OUTLET M14X1.5 / 10MM, FROM 01.07.09
35
FITTING ADBLUE OUTPUT
38
FITTING UREA,RETURN LINE
38
FITTING ADBLUE RETURN LINE
41
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
44
ELECTRIC MOTOR
45
PLUG BIPOLAR, Replaced By: A0025402781
46
PLUG
48
RESERVOIR BLADDER
50
COVERTOA0001400378
53
GASKET HOUSING TO COVER
56
GROMMET SEAL
59
BRACKET ,WKK 629410 13 102802, Replaced By: A0004700781
62
SOLENOID VALVE. VALVE
65
SPACER SLEEVE. SPACER TUBE VALVE TO CRANKCASE
68
COUPLING
71
CONNECTOR12-90GRAD
74
PLUG CONNECTOR HEATING WATER CONNECTION 90 GRAD, TO 000 140 02 78
77
SUCTION LINE HEATING WATER FEED
80
RISING PIPE HEATING WATER RETURN
83
HOSE271-15X24X2000, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
86
RADIATOR HOSE9X3.5 MM, ORDER BY THE METER
89
FUEL HOSE. HOSEB5,5-2,5,WEB 629012 13 520122 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
92
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
95
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
98
CLAMP DELIVERY AND SUCTION LINES TO FRAME
98
CLAMP LINE MOUNTING
104
SCREW BRACKET TO SIDE MEMBER M10X35
104
SCREWM 10X20
104
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
107
SCREWM6X65
110
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
113
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
113
SCREW , Replaced By: N914146006102
116
NUT , Replaced By: N913023006001
119
LOCK NUT. SPRING NUT MOUNTING PARTS
122
CLAMP
125
PLATE LINE MOUNTING
128
RUBBER RING I.D., / O.D., 12 / 21MM
131
STRAP
134
RUBBER STRIP
137
NUT , Replaced By: N913023010002
140
SCREW FUEL TANK MOUNTING
999
CABLE TIE , Replaced By: A0049971890
999
RANGE SPACER
