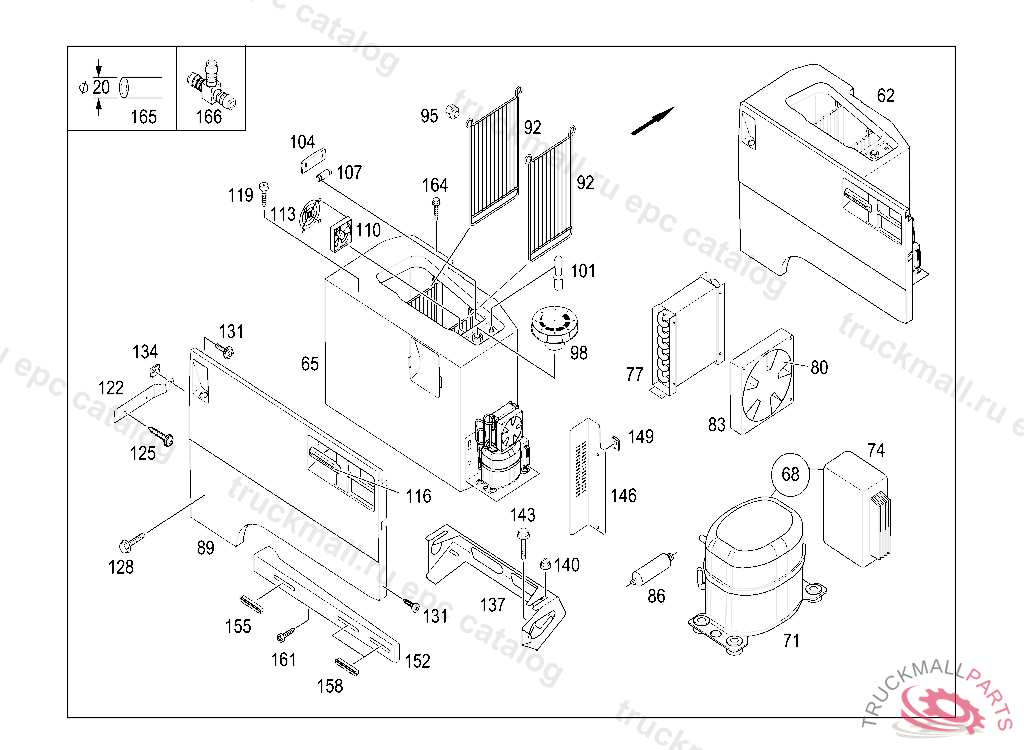

Поз.
Артикул
Описание
62
DEEP FREEZER
65
DEEP FREEZER
68
COMPRESSOR WITH ELECTRONICS
71
COMPRESSOR
74
CONTROL UNIT
77
CONDENSER
80
BLOWER
83
DEHYDRATOR
86
RESISTOR
89
COVERING REFRIGERATOR
92
GRILLE
95
SCREWM6X16
98
THERMOSTAT
101
SWITCH (PRESSURE SWITCH)
104
INTERIOR LAMP
107
BULB
110
AXIAL FAN
113
GRILLE
116
HANDLE
119
TAPPING SCREW BRACKET MOUNTING 4.8X19
122
ANGLE CENTRAL CONSOLE
125
TAPPING SCREW
128
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
131
SHEET METAL SCREW BRACKET TO SUPPORT
134
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
137
CONSOLE DEEP FREEZER
140
NUT GUIDE RAIL,REAR BOTTOM
143
SCREW PIPE ELBOW TO BRACKET M8X12
146
COVERING
149
SPRING-THREAD NUT PROTECTIVE PLATE
152
NOZZLE FOR CO-DRIVER
155
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
158
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
161
TAPPING SCREW BRACKET MOUNTING 4.8X19
164
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
164
SCREW , Replaced By: N914146006102
165
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
166
T-FITTING
999
BRACKET
999
LOCK
999
LOCK MAINTENANCE FLAP
999
CABLE TIE310X5MM
999
CLOSINGBN 9001
999
KEYBN 9300
