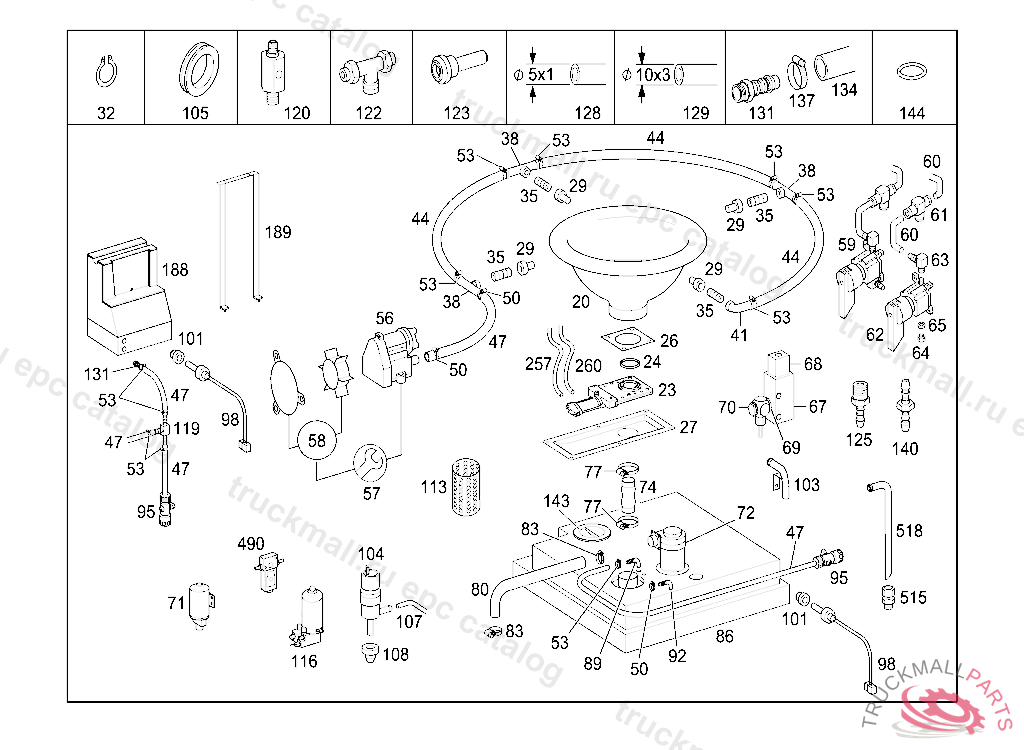

Поз.
Артикул
Описание
20
WC FLUSHING TRAY
20
WC FLUSHING TRAY
23
SHUTOFF SLIDE
24
SEAL RING
26
ADAPTER
27
COVERING
29
NOZZLE FLUSHING NOZZLE
32
SNAP RING FLUSHING NOZZLE
35
GROMMET
38
FITTING T SCREW-IN FITTING
41
FITTING ANGULAR SCREW FITTING 8 R1/4"
44
HOSE COMPRESSED AIR HOSE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
HOSE PVC 13X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
50
CLAMP12-22
53
CLAMP8-16
56
PUMP FECES CONTAINER
56
PUMP CHEMICAL FLUSH
57
REPAIR KIT
58
REPAIR KIT
59
VALVE
67
VALVE COMPLETE
68
VALVE (SOLENOID VALVE)
69
SEAL
70
FITTING
71
VALVE CONTROL STOP
72
BLOWER SOIL VENT
74
HOSE
74
HOSE RUBBER BOOT
77
CLAMP HOSE TO PIPE ELBOW 90-110X12MM
80
HOSE
83
CLAMP
86
RECEPTACLE FECES CONTAINER
89
FITTING. ANGLE ANGULAR SCREW FITTING 19 R3/4"
92
ANGLE. FITTING ANGULAR SCREW FITTING 12/R1/2
95
CONTROL STOP. FASTENER CONTROL STOP
98
SWITCH WASHER WATER LEVEL SENDER UNIT
101
GROMMET
104
PUMP
105
WASHER
105
GROMMET
107
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
113
STRAINER
116
PUMP FECES
119
T-FITTING CONNECTION FITTING
122
DISTRIBUTOR FOR HOSE 6 MM
123
PLUG
125
FITTING SCREW-IN FITTING 6/R1/4
128
HOSE5X1,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
129
HOSE TRANSPARENT PVC WITH FABRIC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
131
FITTING SCREW-IN FITTING 25/R1
131
FITTING SCREW-IN FITTING 12/R1/2
134
HOSE TRANSPARENT PVC WITH FABRIC 25 X 4,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
137
CLAMP20-32
140
FITTING REDUCTION FITTING
143
COVERING LESS BORE
143
COVERING FECES CONTAINER
144
COVERINGDICHTUNG
188
WATER CONTAINER
188
WATER CONTAINER
188
RESERVOIR FRESH WATER TANK
189
STRAP
257
HOSE BLUE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
260
HOSE NATURAL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
490
VALVE 3/2-WAY SOLENOID VALVE 24 V
515
SEAL CONE
518
TUBE
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
FASTENER
999
VALVE FECES CONTAINER
999
RESERVOIR ASHTRAY
999
PLUG SOCKET
999
PLUG SOCKET
999
LOCKKASTEN
999
FITTING
