Mercedes A6296301045 - BEFESTIGUNGSPLATTE F

S 416 HDH 629.425

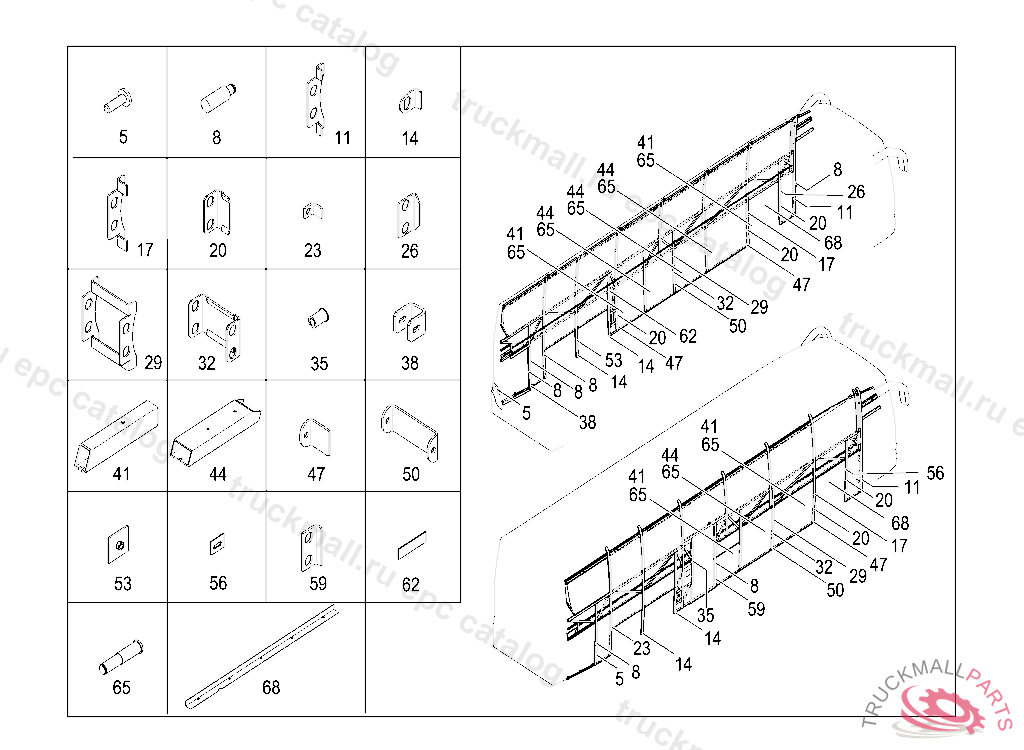

63 SIDE PANELS - 500 SUPPORT AND CONNECTORS FOR FRAME,LEFT AND RIGHT IL. 1

Поз.
Артикул
Описание
5
A6276310321
END PIECE25LG
8
A6296310021
END PIECE
11
A6296320131
CONSOLE
14
A6276310225
ANGLE35MM
17
A6296320031
CONSOLE SPRING LOCK W.KNOB 130X41MM
20
A6296311631
CONSOLE
23
A6276310131
CONSOLE
26
A6296310625
ANGLE
29
A6296320231
CONSOLE SPRING LOCK W.KNOB
32
A6296311731
CONSOLE
35
A0009845221
RIVETED NUT
38
A6296310314
BRACKET
41
A6326320089
TAKE-UP DEVICE ONE SIDED
44
A6326320589
TAKE-UP DEVICE TWO-SIDED
47
A6296310714
BRACKET ONE-SIDED
50
A6296310814
BRACKET ZWEISEITIG
53
A6296301045
PLATE
56
A6296113914
BRACKET
59
A6276310431
CONSOLE
62
A6276321711
PLATE3X35X65 MM
62
A6276312924
PLATE2X20X70 MM
65
A6326320289
TAKE-UP DEVICE
68
A6296300046
ANGLE , Replaced By: A6296300546
68
A6296300546
ATTACHMENT ANGLE BRACKET , EXHAUST STOCK OF OLD PART NUMBER FIRST
