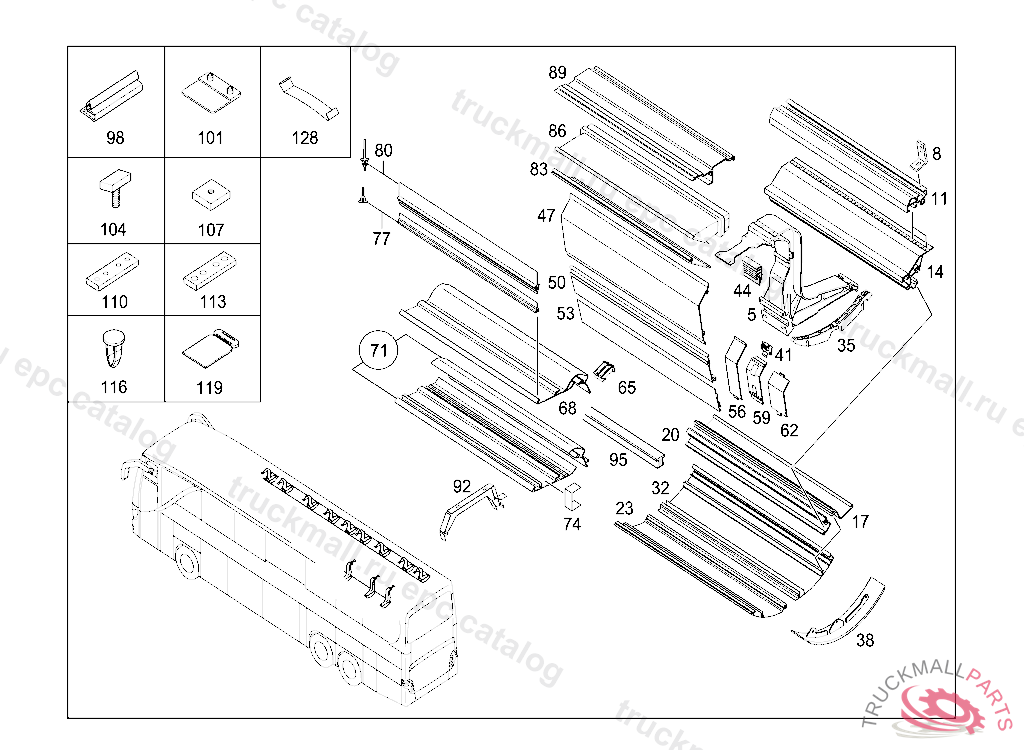

Поз.
Артикул
Описание
5
BRACKET
8
BRACKET
11
RAIL , TO BE ADAPTED DURING ASSEMBLY
14
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
17
RAIL6000MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
RAIL CLIPPED, SERVICE SIDE, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
23
RAIL CLIPPED, SERVICE SIDE, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298367927
32
RAIL SCREWED, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298362220, +001A6298362320
32
RAIL CLIPPED, VISUAL SIDE, TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298367627
32
RAIL
35
REINFORCEMENT
38
COVERING
41
FASTENER
44
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
PANELLING
50
RAIL , TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
56
COVERING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
59
COVERING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
62
COVERING
65
BRACKET
68
RAIL , Replaced By: A6298362620
68
RAIL
71
RAIL , FROM ID-NO. WKK 629410 13 000179 FROM ID-NO. WKK 629411 13 000495 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
74
BRACKET
80
COVERING
83
RAIL , TO BE ADAPTED DURING ASSEMBLY
86
PIPE SOCKET
89
RAIL , TO BE ADAPTED DURING ASSEMBLY
92
REINFORCEMENT
95
SEAL7MM, TO BE ADAPTED DURING ASSEMBLY
98
LEDGE , TO BE ADAPTED DURING ASSEMBLY
101
COVERING
104
T-SCREWM 6X16
104
T-SCREW
107
NUTM8
110
SHACKLE
113
SHACKLE
116
LOCK
116
LOCK
119
FLAP BREAK PULSE
128
COVERING
