Главная
›
Mercedes
›
BUS
›
S 416 HDH
›
629.425
›

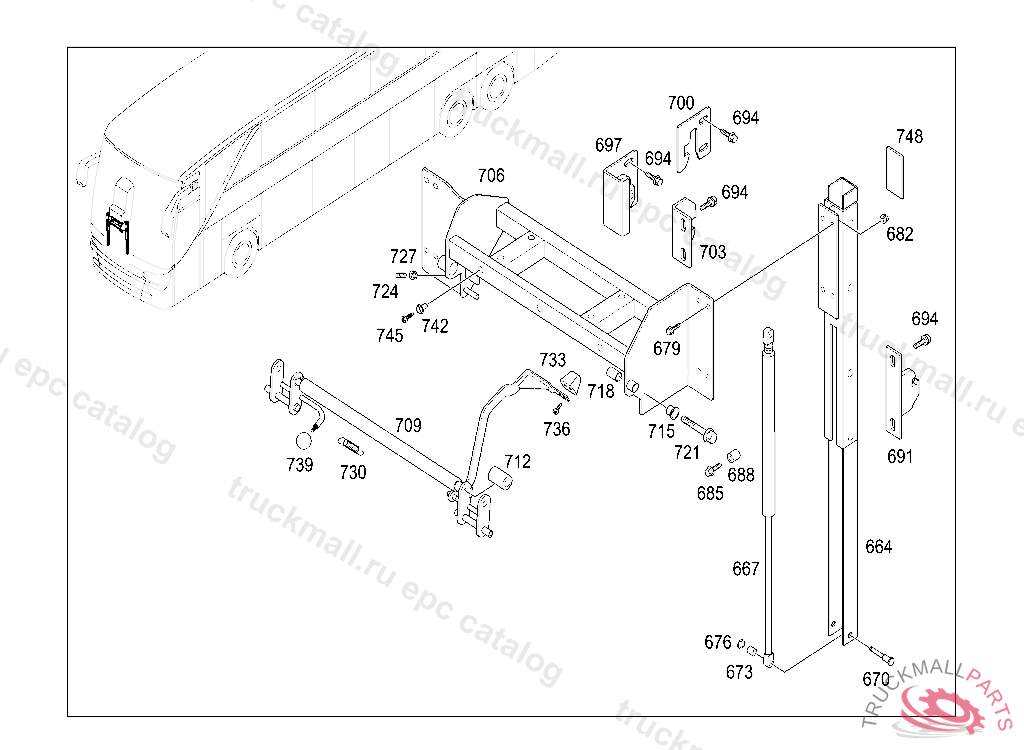

91 FRONT SEATS
›
060 CO-DRIVER'S SEAT IL. 12
Mercedes A6329100371 - ZB HANDGRIFF
S 416 HDH 629.425
91 FRONT SEATS - 060 CO-DRIVER'S SEAT IL. 12
Поз.
Артикул
Описание
664
A6299100127
RAIL
667
A6299110434
SPRING
670
A6299110515
PIN
673
A6299120018
SLEEVE
676
A0009911725
WASHER
679
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
682
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
685
A0029908022
BOLT. SCREWM8X30MM
688
A6299120018
SLEEVE
691
A6299100062
DETENT
694
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
697
A6299100162
DETENT
700
A6299110362
DETENT
703
A6299110262
DETENT
706
A6299100095
SUPPORT
709
A6299501775
TUBE
712
A6299111017
BUSHING
715
A6299410217
BUSHING
718
A6299111217
BUSHING
721
N910105012042
SCREW SHIM TO BRACKET
724
N000913010102
THREADED PIN
727
N910112010001
NUT , Replaced By: N913023010002
730
A0009933711
TENSION SPRING
730
A6299110034
SPRING TENSION SPRING
733
A6329100371
HANDLE
736
A0009590071
SCREW
739
A0009980075
BALL KNOB
742
A0029885081
FASTENER BUTTON
745
N000000000447
TAPPING SCREW BRACKET MOUNTING
748
A6299110197
UNDERLAYER
999
A0008244205
DRIVE SHAFT
999
A0008290845
SPINDLE
999
A0009190739
GEAR
