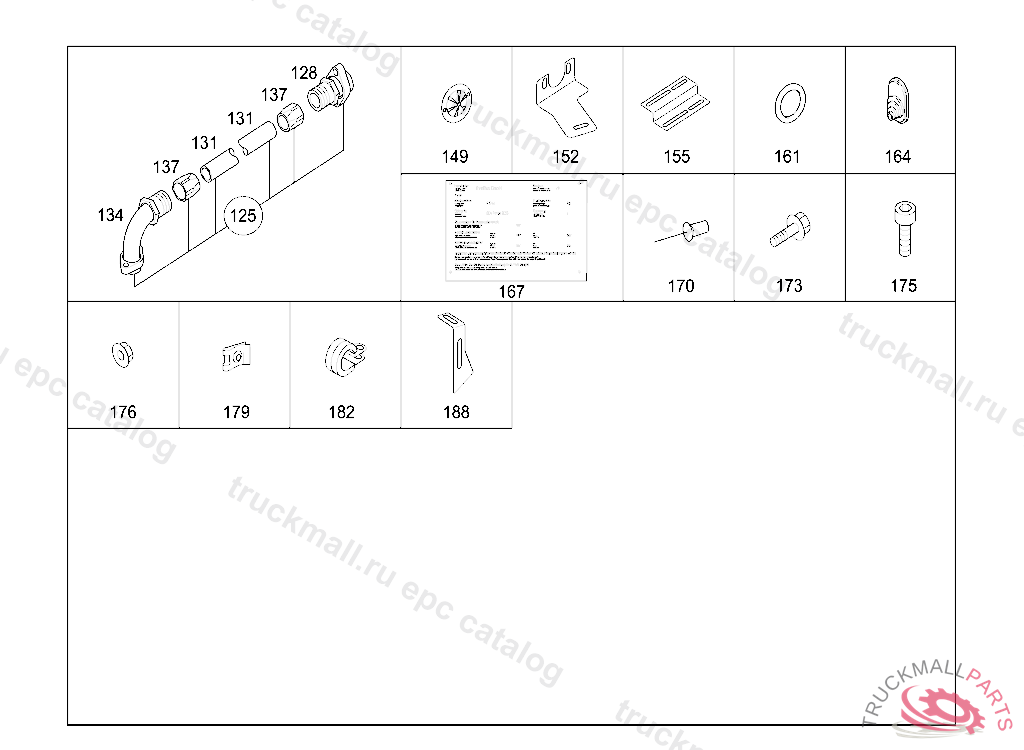

Поз.
Артикул
Описание
125
HOSE ASSEMBLY COMPRESSOR NW32X900MM
128
CONNECTORNW32
131
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
HOSE
137
SOCKET
149
CLAMPING DISC30X23X3,5X0,4MM
155
"Z" SECTION170MM
155
"Z" SECTION390MM
155
"Z" SECTION280LG
155
RAIL LINE MOUNTING 115 LG.
155
"Z" SECTION335MM
155
"Z" SECTION775MM
161
GASKET34X42 MM
164
CABLE PASSAGE FOR CABLE HARNESS DIA.: 18MM (100X75MM)
167
PLATE
170
BLIND RIVET BRACKET TO BRACKET 3.2X8
173
HEXAGON HEAD BOLT
173
SCREW BRACKET AND CLAMP M6X20
175
CAP BOLT. SCREW BUMPER TO BRACKET,5 398606
175
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
175
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
176
NUT , Replaced By: N913023006001
176
NUT , Replaced By: N913023010002
176
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
179
LOCK NUT. SPRING NUT MOUNTING PARTS
179
LOCK NUT. SPRING NUT STEP TO ENTRANCE
182
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
182
CLAMP35/20
182
CLAMP LINE MOUNTING 15-18 MM,V 207570
182
CLAMP42/20, Replaced By: N000000007548
182
CLAMP35/20, Replaced By: N000000007514
182
CLAMP42/20
188
BRACKET
999
SEALING CAP7/16"
