Mercedes A6296251014 - Halter

S 407 CC USA EPA 10 629.540

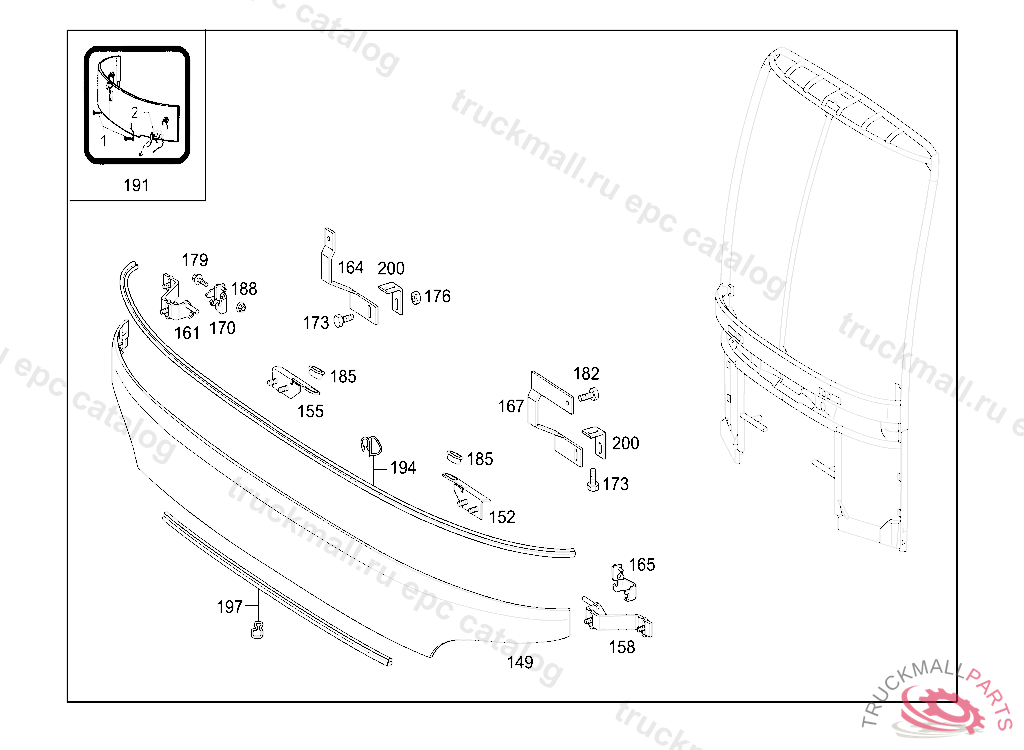

62 COWL,FRONT PANEL - 030 COWL IL. 3

Поз.
Артикул
Описание
149
A6296270374
MOLDING
152
A6296253114
BRACKET LEFT
155
A6296253214
BRACKET RIGHT
158
A6296201115
CONSOLE LEFT
161
A6296201215
CONSOLE RIGHT
164
A6296251114
BRACKET , Replaced By: A6296254514
164
A6296251014
BRACKET , Replaced By: A6296251114
165
A6296202314
BRACKET
167
A6296254514
BRACKET
170
A6296202414
BRACKET
173
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
176
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
179
N910105006004
SCREW , Replaced By: N914146006102
182
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
185
A0009927905
BUSHING8,3X20MM
188
N910112006001
NUT , Replaced By: N913023006001
191
A6296280100
GUMMED LABEL
194
A0009872562
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
197
A0009871762
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
