Mercedes A0008214157 - KLEBESCHILD / BATTER

S 417 TC USA EPA 10 629.557

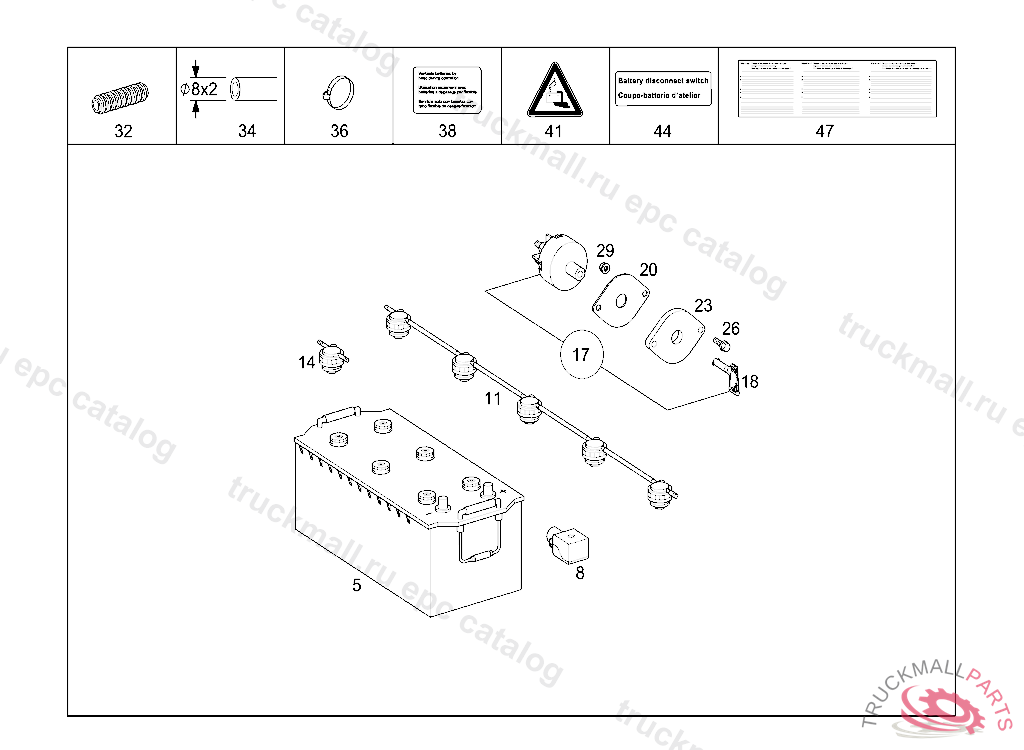

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 070 BATTERY,MOUNTING,AND BATTERY CABLES IL. 1

Поз.
Артикул
Описание
5
A0045414401
BATTERY
5
A0045411701
BATTERY , Replaced By: A0045414401
8
A0005410833
COVERING NEG.POLE
8
A0005410733
COVERING POS. POLE
11
A0005400061
BREATHER LINE BATTERY VENTING
14
A0005412347
VENT BATTERY M26X3
17
A0015451508
BATTERY CIRCUIT BREAKER (BATTERY MASTER SWITCH)
18
A0005451244
KEY BATTERY CUT-OFF " KISSLING "
20
A6295450008
BATTERY CIRCUIT BREAKER SEAL
23
A6298990011
ASSEMBLY PLATE
26
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
29
N304032008006
NUT
32
A0025461130
CORRUGATED HOSE12MM
34
A0029972652
HOSE ASSEMBLY. HOSE8X2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
36
N000000000324
CLAMP LINE MOUNTING 15-18 MM,V 207570
36
N000000000754
CLAMP10-16X9MM
38
A0008215757
STICKER
41
A0008214157
STICKER
44
A0008214257
STICKER
47
A0008215657
STICKER RISK OF EXPLOSION BY OXYHYDROGEN GAS
