S 417 TC USA EPA 10
629.557
68 PANELLING AND LINING
330 INSTRUMENT PANEL IL. 1

Mercedes A3028120034 - Пружина

S 417 TC USA EPA 10 629.557

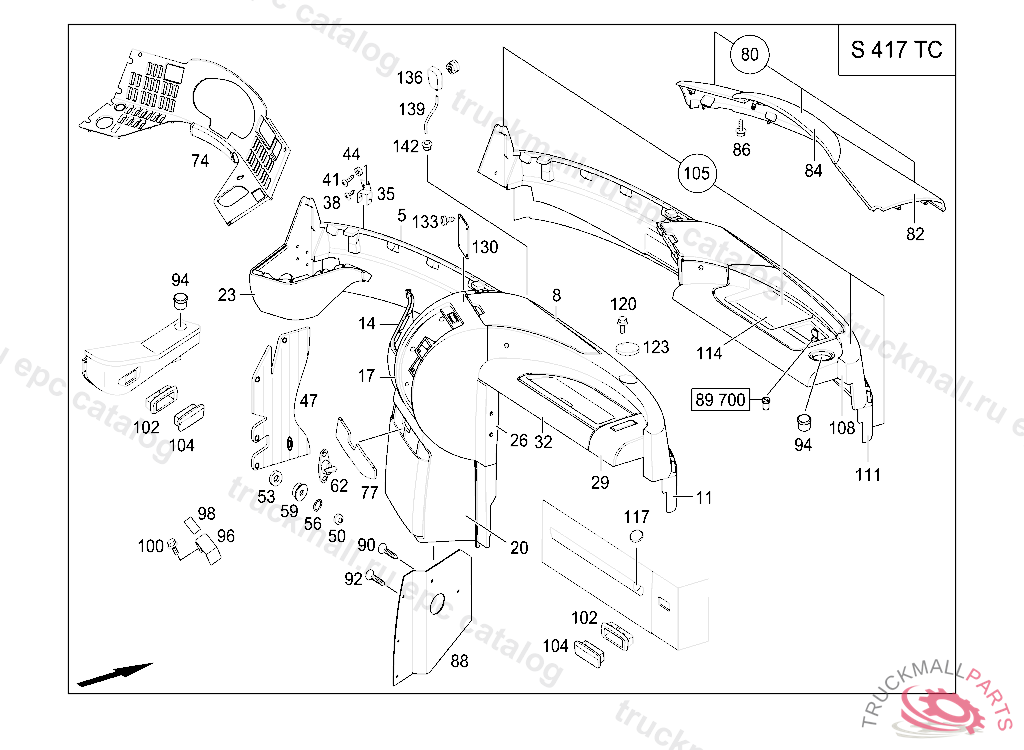

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 1

Поз.
Артикул
Описание
5
A6296800806
PANELLING
8
A6296800880
COWLING COCKPIT AREA
11
A6298300023
AIR DUCT
14
A6296800131
CONSOLE
17
A6296800231
CONSOLE
20
A6296800110
PANELLING
20
A6296800331
CONSOLE
23
A6296801106
PANELLING
26
A6296800076
INTERMEDIATE LAYER
29
A6296800317
COVER WITH CUPHOLDER
32
A6296801206
PANELLING
35
A6296890214
BRACKET PANORAMIC CAMERA
38
N000000000514
TAPPING SCREW MOUNTING PLATE 3.5X9.5
41
N000000000515
TAPPING SCREW RAIL
44
N000000003738
WASHER4MM
47
A0006880406
TRIM PANEL FEET RECESS LEG ROOM
47
A0006880006
PANELLING
50
A1369881081
CAP COVERING
53
A0059909340
WASHER
56
A3028120034
SPRING
59
A0029885081
FASTENER BUTTON
62
A0029881042
FASTENER WITH EYELET
74
A6296802980
COVERASTRONIC
74
A6296802880
COVERALLISON
77
A6296970227
LEDGE
80
A6296801307
COVERING
82
A6296801207
COVERING
84
A6296800039
ORNAMENTAL COVER
86
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
86
N000000000458
TAPPING SCREW ATTACHMENT GRAB HANDLE
88
A6296890185
PANELLING
90
N000000000527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
92
N000000000464
TAPPING SCREW HANDLE TO PANELLING
94
A6298430014
GLASS BRACKET
96
A6296800707
COVER EMERGENCY SWITCH
98
A6298171720
INFORMATION LABEL EMERGENCY SWITCH
100
N000000000515
TAPPING SCREW RAIL
102
A6298130258
HOUSING
104
A6297110069
ORNAMENTAL COVER ASHTRAY
105
A6296800580
PANELLING
108
A6296800680
PANELLING
111
A6298300023
AIR DUCT
114
A6298300652
COVER F REFRIGERATOR
117
A0109971981
GROMMET
120
N000000002027
TAPPING SCREW2,9X9,5
123
A0008160208
COVER MICROPHONE FIXTURE
130
A3726890016
REINFORCEMENT MONITOR SAUCON
133
N000000000452
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
136
A0008211036
COVERING RAIN/LIGHT SENSOR
139
A0001530364
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 7.5 MM, ORDER BY THE METER
142
A6299980001
FEED-THROUGH GROMMET
