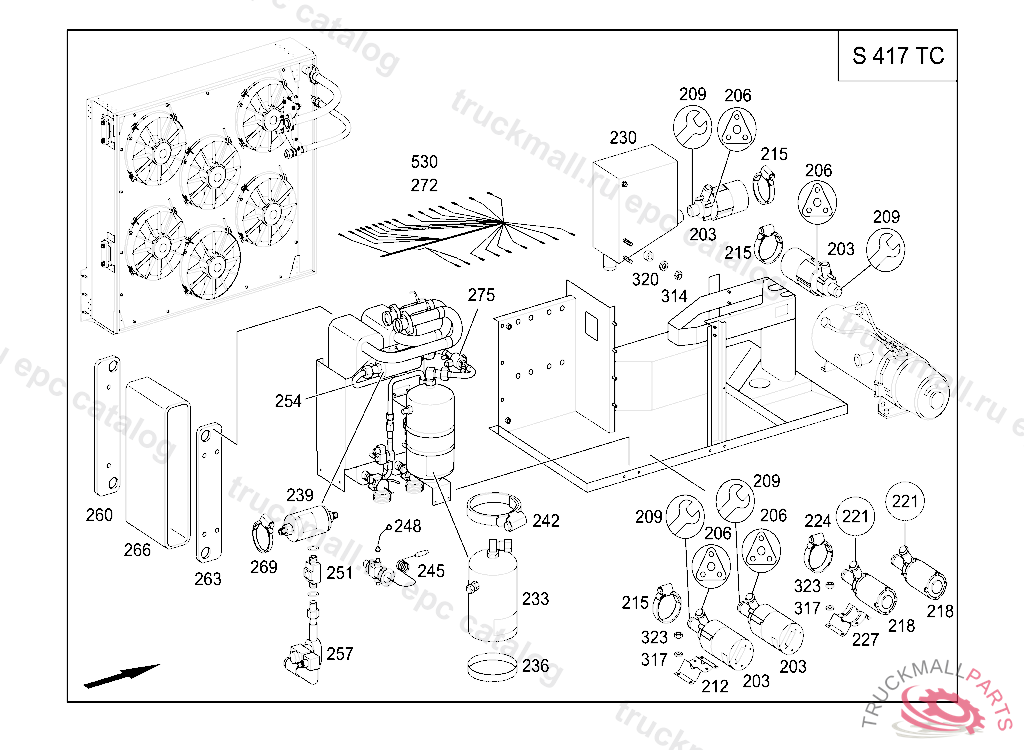

S 417 TC USA EPA 10
›
629.557
›
83 HEATING AND VENTILATION
›
090 AIR CONDITIONER IL. 5
Mercedes A6278350615 - ТРУБОПРОВОД
S 417 TC USA EPA 10 629.557
83 HEATING AND VENTILATION - 090 AIR CONDITIONER IL. 5
Поз.
Артикул
Описание
203
A0028352964
PUMP CIRCULATION PUMP 2,U4856
206
A0018356798
GASKET KIT REPAIR KIT
209
A0008352039
REPAIR KIT PUMP COVER
212
A0008350122
SUPPORT CIRCULATION PUMP
215
N000000000675
CLAMP , Replaced By: A0059972990
218
A0028354764
PUMP CIRCULATION PUMP 1,U4854
221
A0008336226
COUPLING PARTS KIT
224
N000000000673
CLAMP HOSE TO RETARDER 60-80X13 MM
227
A0008350922
SUPPORT
230
A0008355471
TANK WITH VALVE
233
A0008302783
TANK
236
A0009940703
RETAINING RING
239
A0018306158
DEHYDRATOR
242
N000000002136
CLAMP180-200X12MM
245
A0038302984
VALVE EXPANSION VALVE
248
A6278350615
PIPE LINE CAPILLARY TUBE
251
A0009971938
SIGHT GLASS
254
A0088306615
REFRIGERANT LINE
257
A0008300516
REFRIGERANT LINE WITH MAGNET
260
A0008351581
INSULATION
263
A0008351681
INSULATION
266
A0008351781
INSULATION
269
N000000000674
CLAMP HOSE 70-90X13 MM
272
A0015465614
CABLE HARNESS BETWEEN CONDENSER AND WATER DISTRIBUTION STATION
275
A0008300416
REFRIGERANT LINE
314
N913023008003
NUT HORN TO BRACKET M8
317
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
320
N000000003260
WASHER LINE MOUNTING
323
N913023005002
NUT RELAY TO BRACKET M5
530
A0015465614
CABLE HARNESS BETWEEN CONDENSER AND WATER DISTRIBUTION STATION
999
A0008330798
SEAL
999
Q0011110013
BLIND RIVET4X7,6MM
