Mercedes A0005450171 - RAENDELSCHRAUBE

S 417 TC USA EPA 10 629.557

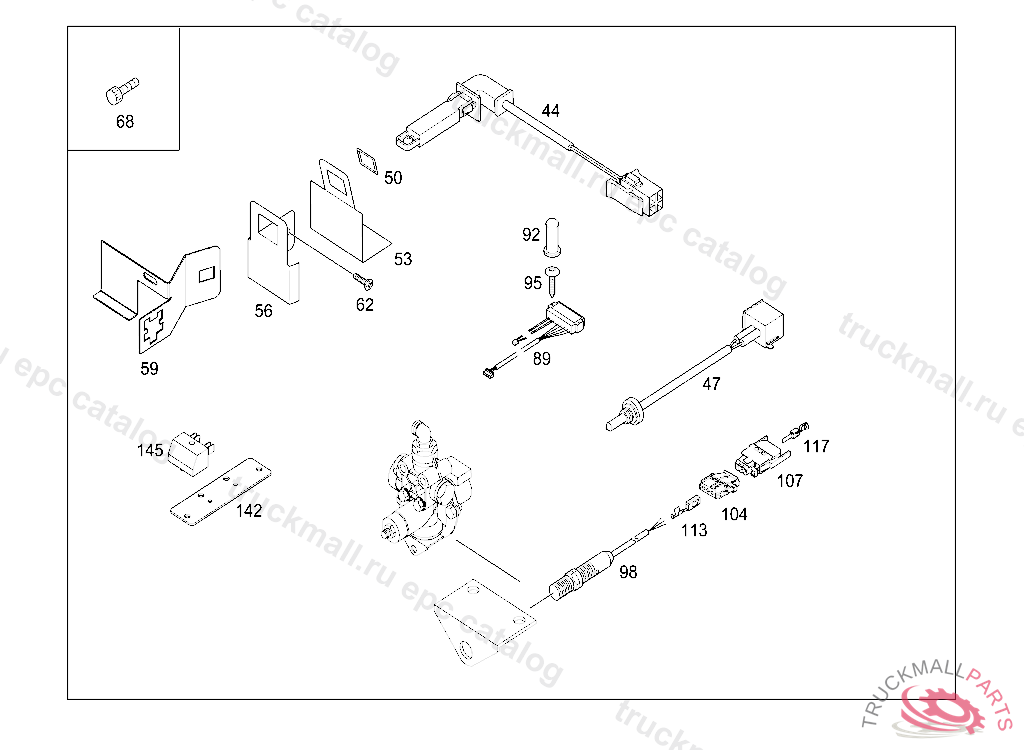

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
44
A0078200810
TEMPERATURE SENSOR
47
A0078200610
SWITCH OUTBOARD TEMPERATURE FEELER
50
A0269977048
SEAL RING
53
A0008212914
BRACKET GLUED VERSION
56
A6298210014
BRACKET
59
A0008214614
BRACKET TEMPERATURE SENSOR
62
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
68
A0005450171
SCREW
89
A0015434515
TRIMMING MODULE
89
A0015432915
MODULE , Replaced By: A0015434515
92
A0009880527
GROMMET
95
A0019905336
SCREW4.2X32
98
A0025402945
PROXIMITY SWITCH MAINTENANCE FLAP
104
A0135455826
PIN BUSHING HOUSING 3-POLE
107
A0365459928
PLUG HOUSING 3-POLE
113
A0135457826
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
113
A0135457726
PIN BUSHING1.5 - 2.5 MM2
117
A0355452228
PLUG2.8 MM
