Mercedes A0006830006 - MONTAGERAHMEN

S 417 TC USA EPA 10 629.557

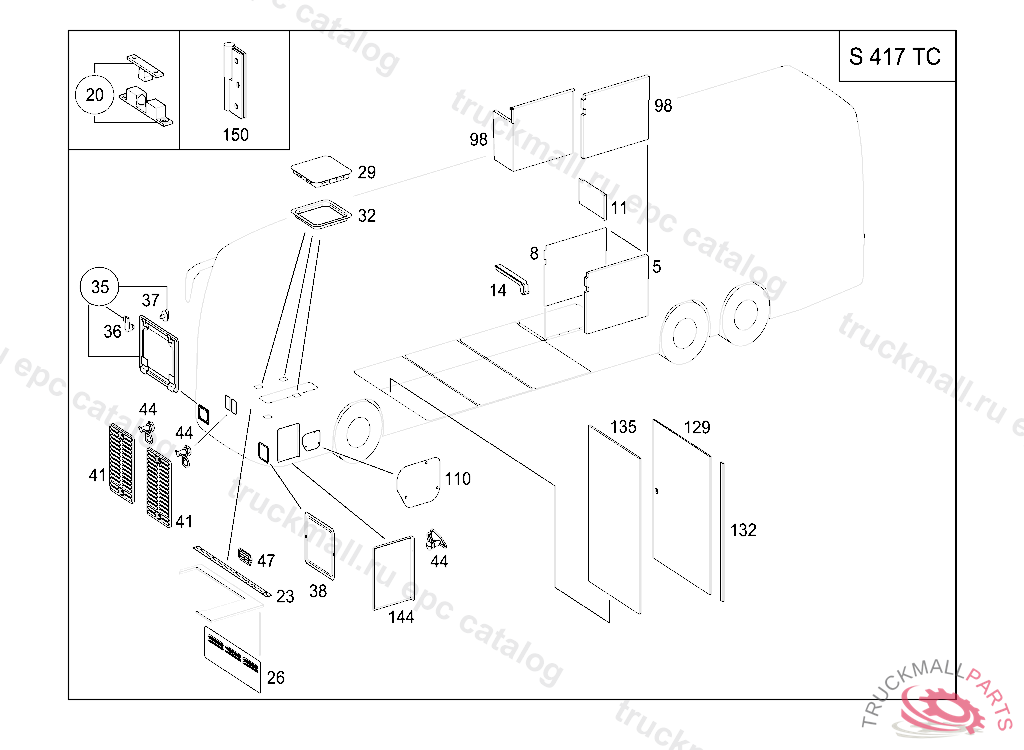

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
5
A6296820716
COVER , TO BE ADAPTED DURING ASSEMBLY
8
A0006820108
INSULATION1000X1600X3MM, TO BE ADAPTED DURING ASSEMBLY
11
A6296801907
COVER , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 15.10.2009
14
A6296840477
PANELLING WATER PIPE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
A0009883063
SNAP LOCK
23
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
26
A4106840026
COVER STEP
29
A0006800323
SERVICING COVER
32
A0006830006
FRAME
35
A6296801607
CLOSING COVER
36
A0009980695
ROTARY CATCH
37
A0009980595
ROTARY CATCH
38
A6296801707
CLOSING COVER
41
A4106860010
PANELLING
44
A0006830212
FASTENER SUPERFIX
47
A0006820416
COVERING SCREEN
98
A0009832160
PLYWOOD PVC FOIL 2410X1500X12MM, TO BE ADAPTED DURING ASSEMBLY
110
A6296831210
SERVICING COVER CONSOLE
129
A6296831310
SERVICING COVER
132
A6296860074
STRIP
135
A6296820816
COVER AT CROSS MEMBER 4
144
A6296830210
COVER ELECTRICAL COMPARTMENT
150
A6298430151
HINGE
