Mercedes A0009872627 - Трубка пластиковая 6 X 4

S 417 TC USA EPA 10 629.557

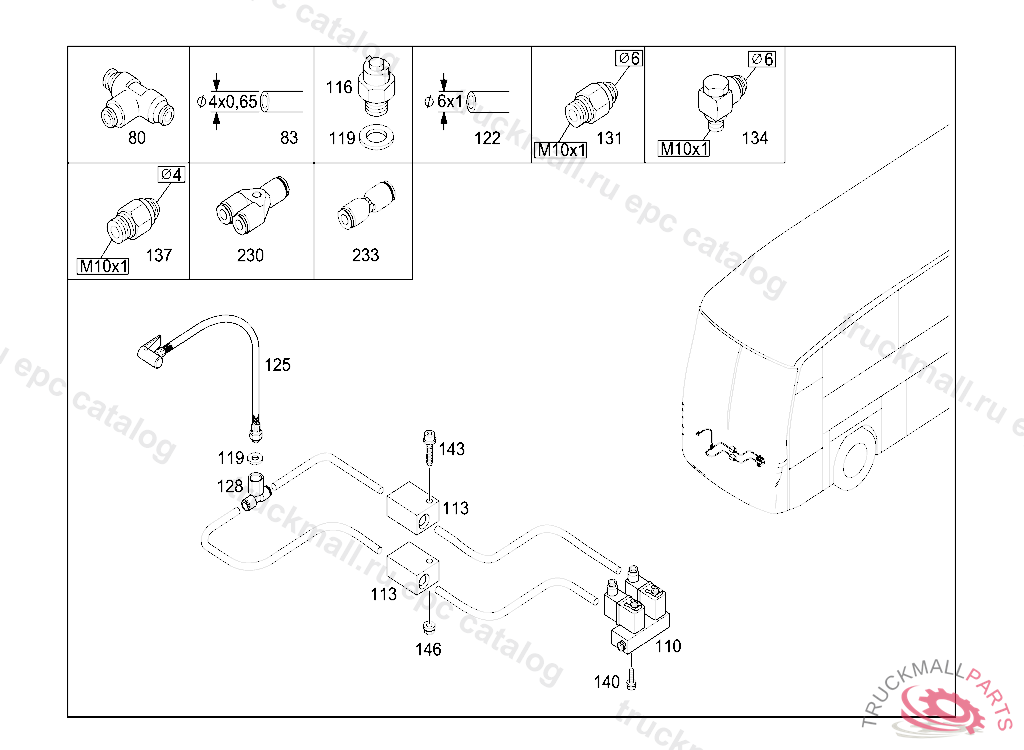

42 BRAKES - 100 8-MM/6-MM COMPRESSED AIR LINES

Поз.
Артикул
Описание
80
A0049907270
T-FITTING
83
A0009873427
PLASTIC PIPE4X0,65MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
110
A0009972012
VALVE
113
A0008050078
VALVE SHUTTLE VALVE
116
A0007633810
SWITCH3 BAR
119
A0059976140
SEAL RING
122
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
125
A0008000082
LINE
128
A0059978789
COUPLING
131
A0039905768
FITTING
134
A0039906768
FITTING
137
A0039906668
FITTINGM 10 X 1
140
N910105006002
HEXAGON HEAD BOLT
143
A0039909312
SCREWM 4 X 50
146
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
230
A0008050022
PIPE BRANCHING Y-PIECE
233
A0059974189
QUICK CONNECTOR
