Mercedes A0039908612 - ZYL.SCHRAUBE EVO 203

S 417 TC USA EPA 10 629.557

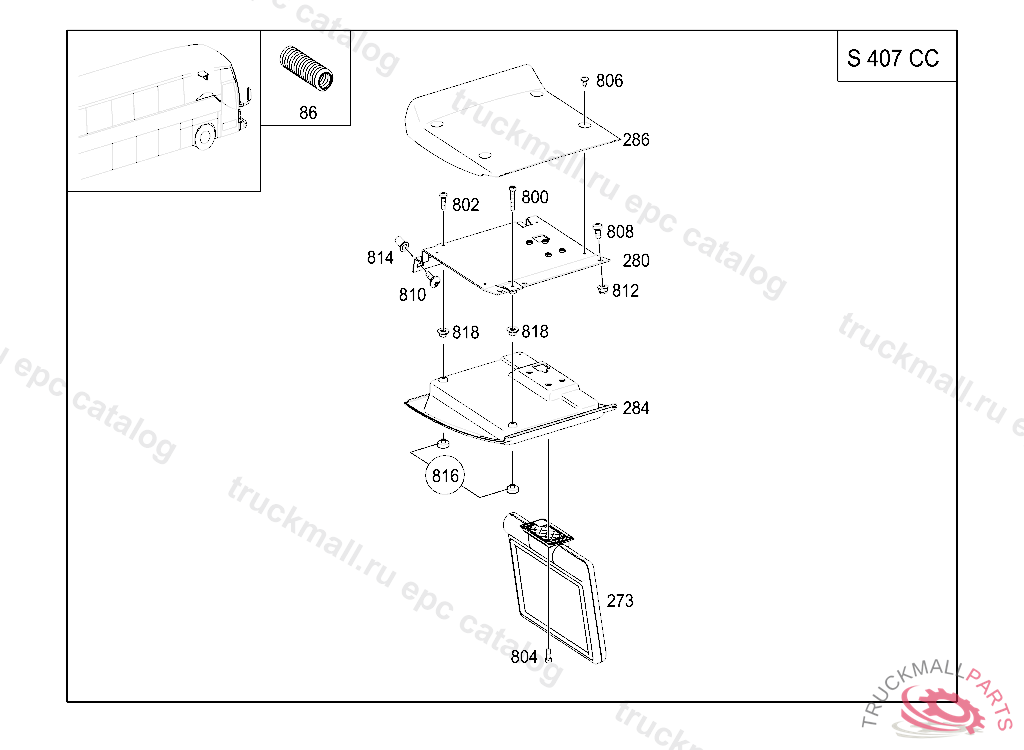

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 5

Поз.
Артикул
Описание
86
A0005461830
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
273
A0068200689
MONITOR
280
A4108100513
BRACKET RIGHT
280
A4108100613
BRACKET LEFT
284
A4108141525
COVER RIGHT
284
A4108141625
COVER LEFT
286
A4108141725
COVER
800
A0039908612
SCREW UNIPOLAR CABLE CONNECTOR
802
N000000001181
SCREW MOUNTING OF INSTRUMENT PANEL
804
A0039908312
SCREWM5X12
806
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
808
N000000001145
SCREW BRACKET TO COVERING
810
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
810
N000000001146
SCREW CLAMP MOUNTING M 6X16
812
N913023006002
NUT BRACKET TO FIRE WALL
814
N913024006100
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
816
A0029883242
MAGNETIC CATCH
818
N000000006133
NUT-AND-WASHER ASSEMBLYM5
