Главная
›
Mercedes
›
BUS
›
S 417 TC USA EPA 10
›
629.557
›
42 BRAKES
›

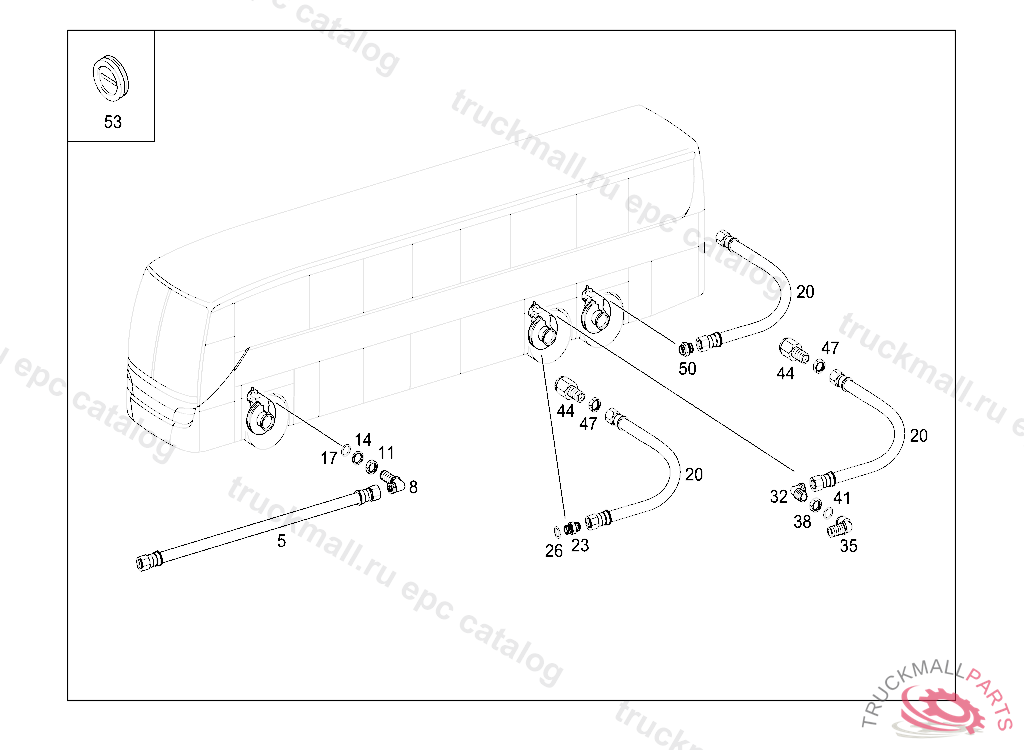

150 MOUNTING OF LINES,HOSES,TEST CONNECTIONS IL. 1
Mercedes A6294200348 - LU BREMSSCHLAUCH
S 417 TC USA EPA 10 629.557
42 BRAKES - 150 MOUNTING OF LINES,HOSES,TEST CONNECTIONS IL. 1
Поз.
Артикул
Описание
5
A6294200548
BRAKE HOSE FRONT AXLE 850MM
8
A0019903371
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
11
N000000006642
NUT BRAKE LINE COUPLING TO BRACKET,230274
14
A0004290927
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
17
A0009971548
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
20
A6294200348
BRAKE HOSE
23
N000000006681
FITTING BRAKE HOSE TO BRAKE CALIPER
26
A0059974440
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
32
A0039972771
FITTING BRAKE HOSE TO BRAKE CALIPER M18X1.5/M22X1.5
35
A0009978270
FITTINGNG12/M22X1.5
38
A0049903750
HEXAGON NUT BRAKE HOSE TO BRAKE CALIPER M22X1.5
41
A0009870446
O-RING CHECK VALVE TO AIR RESERVOIR
44
A0009972270
CONNECTOR BRAKE HOSE TO COMPRESSED AIR LINE M18X1.5
47
N000000006643
NUTM18X1.5
50
A9429970072
FITTING CONTROL DEVICE CONNECTION: P2
53
A0009876441
GROMMET
