Главная
›
Mercedes
›
BUS
›
S 417 TC USA EPA 10
›
629.557
›

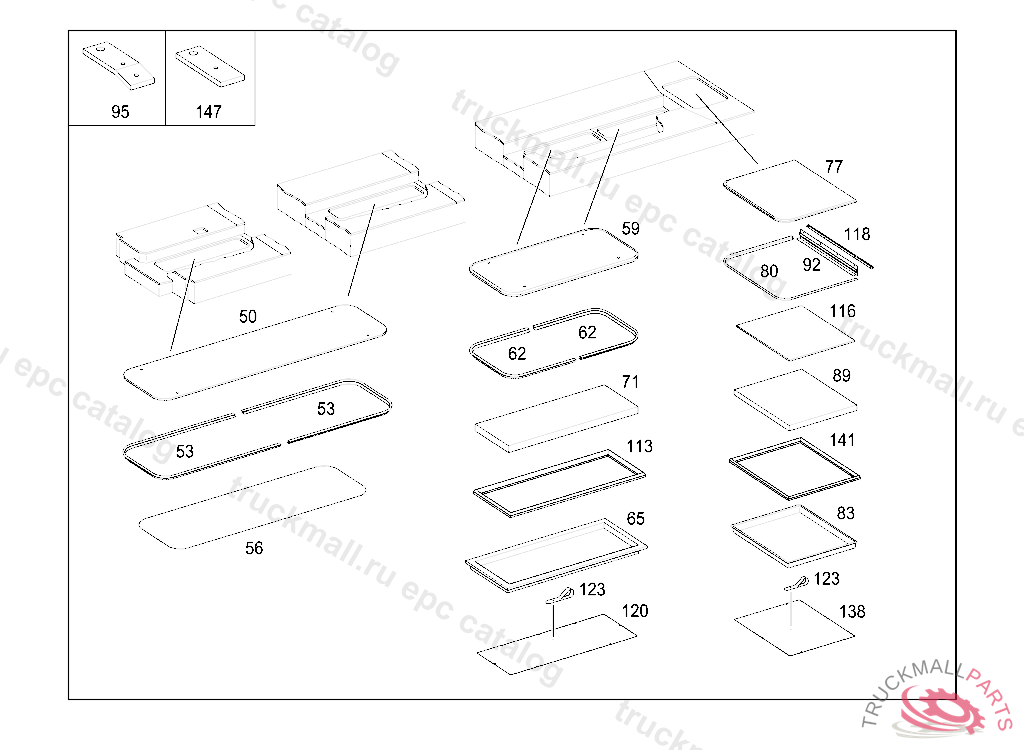

68 PANELLING AND LINING
›
270 FLOORING,FLOOR FLAPS IL. 7
Mercedes A6296840295 - EINFASSSCHIENE RAHME
S 417 TC USA EPA 10 629.557
68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 7
Поз.
Артикул
Описание
50
A4106841164
FLOOR FLAP
50
A6326842564
FLOOR FLAP FRONT
53
A6296840295
EDGING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
56
A6296820409
INSULATION
59
A6296843864
FLOOR FLAP
59
A6296843764
FLOOR FLAP TRANSMISSION
62
A6296842395
BINDING RAIL TRANSMISSION COVER
62
A6296841095
EDGING FOR BOTTOM COVER
65
A6296830527
RECESS TRANSMISSION COVER
65
A6296830427
RECESS TRANSMISSION COVER, Replaced By: A6296830527
71
A0006825409
INSULATING PLATE
77
A6296843164
FLOOR FLAP ENGINE, TO BE ADAPTED DURING ASSEMBLY
77
A4106841364
FLOOR FLAP ENGINE
80
A4106840995
EDGING FOR BOTTOM COVER
83
A4106830227
RECESS AT ENGINE
89
A4106820109
INSULATING PLATE30MM, TO BE ADAPTED DURING ASSEMBLY
92
A4106104623
SUPPORTING MEMBER
92
A6296100640
BEAM
95
A6296830214
BRACKET
113
A6296780020
SEALING FRAME
116
A4106840025
REINFORCEMENT CONSOLE
118
A6296840022
COVER RAIL
120
A6296831410
SERVICING COVER
123
A0008121185
BAND
138
A4106830810
SERVICING COVER
141
A4106780120
SEALING FRAME
147
A4106860011
PLATE
