Mercedes A6296952035 - LU SCHIENE,C-SCHIENE

S 417 TC USA EPA 10 629.557

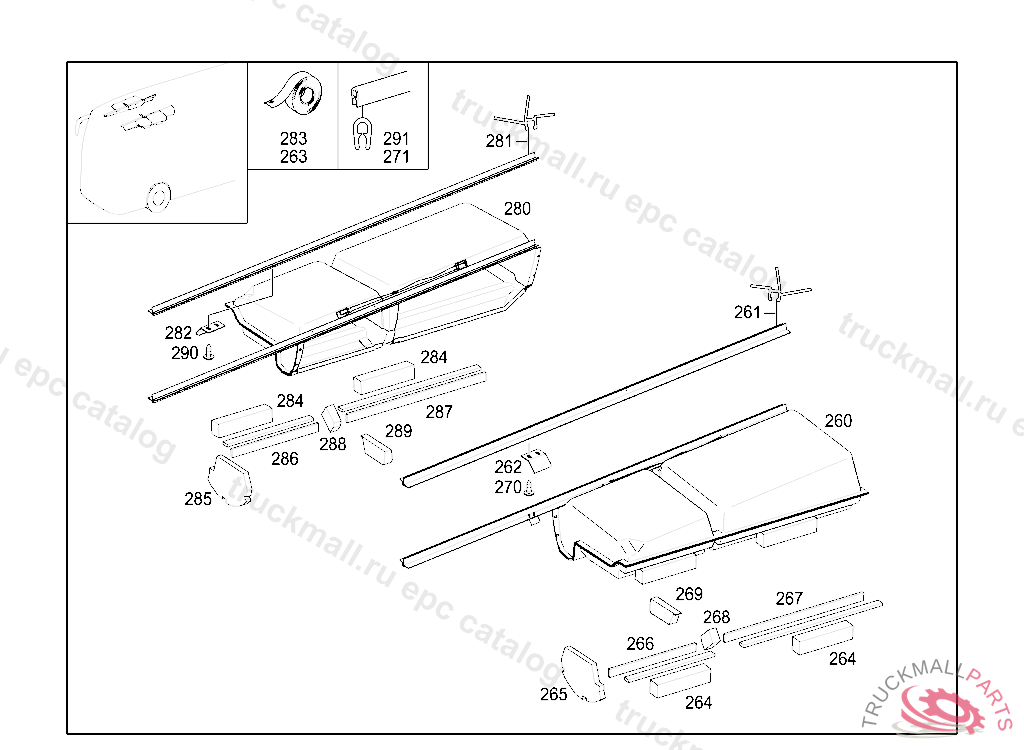

69 COVERING AND LINING - 090 ROOF INTERIOR PANELLING IL. 3

Поз.
Артикул
Описание
260
A6296900092
RACK
261
A6296952035
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
262
A6296950212
ANGLE
263
A0019871514
RUBBER STRIP ANT-SLIP COVER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
264
A6298360698
SEAL
265
A6298360598
SEAL
266
A6298360998
SEAL
267
A6298361098
SEAL
268
A6298360798
SEAL
269
A6298360898
SEAL
270
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
271
A0009871229
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
280
A6296900192
RACK
281
A6296952035
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
282
A6296950212
ANGLE
283
A0019871514
RUBBER STRIP ANT-SLIP COVER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
284
A6298360698
SEAL
285
A6298360598
SEAL
286
A6298360998
SEAL
287
A6298361098
SEAL
288
A6298360798
SEAL
289
A6298360898
SEAL
290
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
291
A0009871229
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
