Главная
›
Mercedes
›
BUS
›
S 417 TC USA EPA 10
›
629.557
›
72 DOORS
›

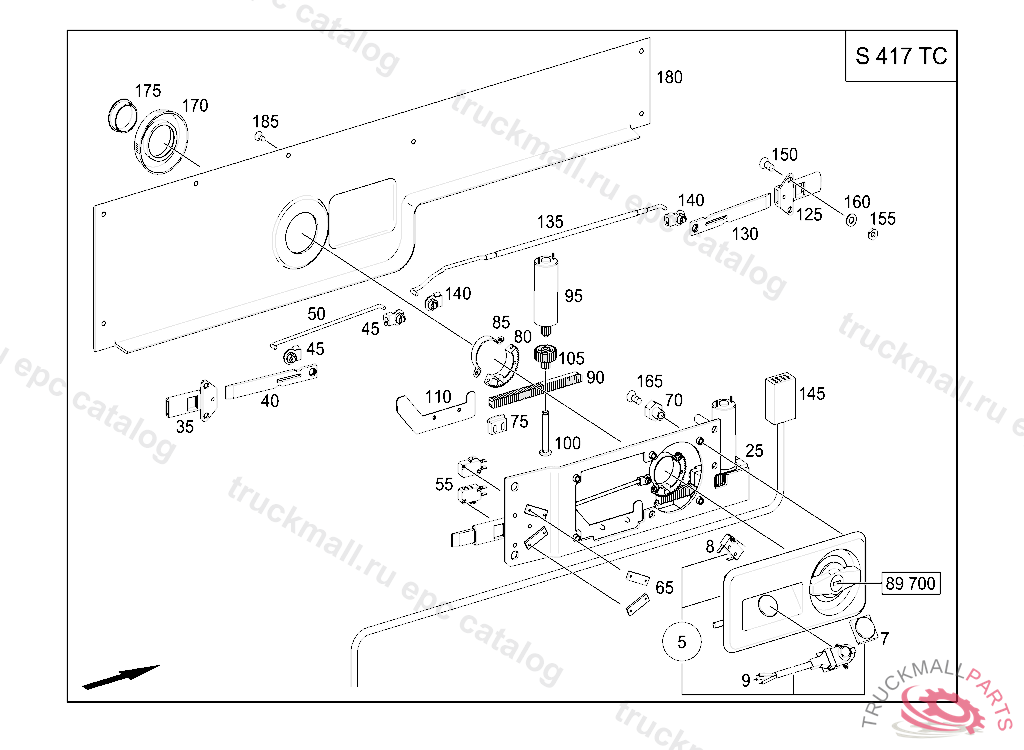

180 CLOSING SYSTEM IL. 1
Mercedes A6297661735 - ABDECKKAPPE F. VERRI
S 417 TC USA EPA 10 629.557
72 DOORS - 180 CLOSING SYSTEM IL. 1
Поз.
Артикул
Описание
5
A6297200166
FASTENER , Replaced By: A6297600160
5
A6297600160
HANDLE
7
A0007660068
ORNAMENTAL COVER MICRO-SWITCH
8
A0008212592
MICRO-SWITCH
9
A0008212492
MICRO-SWITCHTYP83123
25
A6297602208
LOCKING MECHANISM VERSION SWEDEN
35
A6297330064
LATCH GUIDE
40
A6297230246
SLIDE
45
A6297230055
LOCK
50
A6297200092
ROD
55
A0038212351
SWITCHTO A 000 760 90 03
55
A6297630110
SWITCHTO 000 760 35 57
65
A6297230006
PLATE WITH THREADED HOLES
70
A0009902562
NUT
75
A6297230264
GUIDE THRUST PIECE
80
A6297230017
GEAR (TOOTHED SEGMENT)
85
A6297630191
CLAMP
90
A6297630033
PULL ROD
95
A6297630004
MOTOR
100
A0009915615
BALL PIVOT
105
A6297230117
GEAR DOUBLE GEAR
110
A0007236008
COVERING
125
A6297330064
LATCH GUIDE
130
A0007230246
SLIDE
135
A0007200992
ROD
140
A6297230055
LOCK
145
A0138200504
ELECTRICAL WIRING HARNESS
150
A0019909620
SCREWM5X12 TX25
155
N304035005001
NUT
160
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
165
A0019909620
SCREWM5X12 TX25
170
A6297230109
HANDLE
175
A6297230608
COVERING PLUG
180
A0007235908
COVER CAP
180
A6297661735
COVERING DOOR LOCKING MECHANISM
185
N000000000831
TAPPING SCREW3.5X9.5
999
A0007224708
COVER
999
A0007224608
COVER , Replaced By: A0007224708
