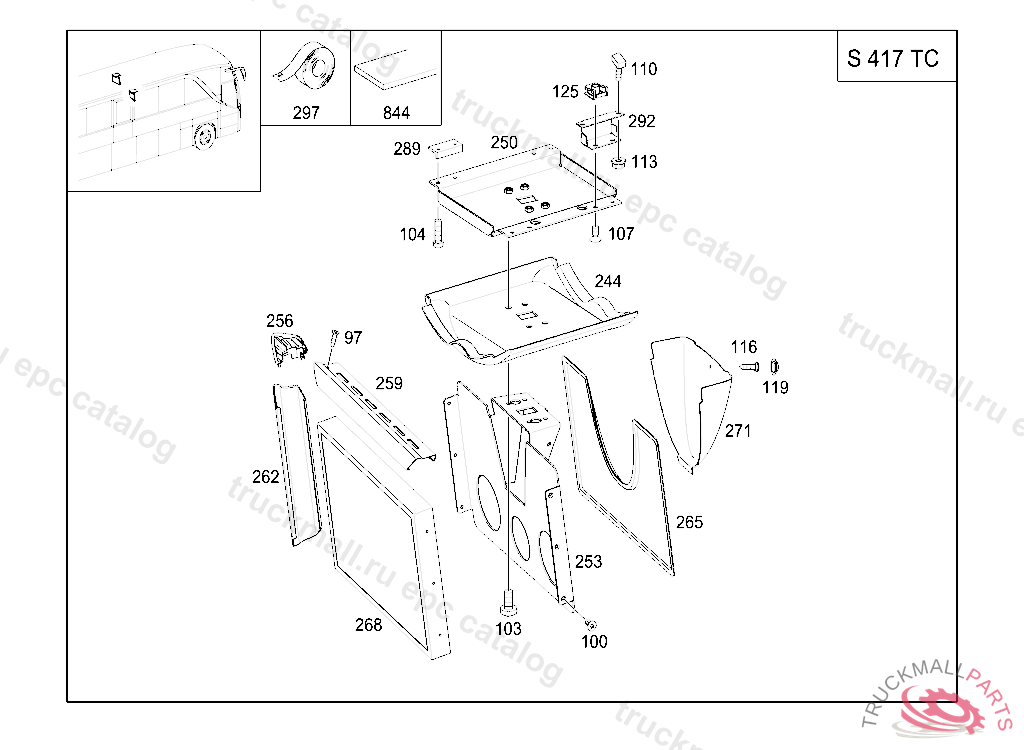

Mercedes A6298144125 - VERKLEIDUNG

S 417 TC USA EPA 10 629.557

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 1

Поз.
Артикул
Описание
97
N000000002696
SCREW MOUNTING, SUPPORT PLATE 3X10
100
N000000007000
SCREW RELAY SOCKET TO APPARATUS PLATE M5X10
100
A0029901020
SCREW
103
N000000001152
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
104
A0039909012
SCREW PRESSURE SENSOR M6X20 TX30 TO A 003 431 62 06
107
A0019909920
SCREWM6X12 TX30
110
A0009900008
T-SCREWM 6X16
113
N910112006001
NUT , Replaced By: N913023006001
116
A0059905036
SCREW4.2X16
119
A0009876945
CAP
125
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
125
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
125
A0049941445
LOCK NUT. LOCK PANELLING TO BUMPER
244
A6298144225
PANELLING
244
A6298144125
PANELLING
250
A6298101913
BRACKET
250
A6298101813
BRACKET
253
A4108100014
BRACKET
256
A4108250075
ORNAMENTAL COVER
259
A4108270024
FRAME
262
A4108270124
FRAME
265
A4108141225
PANELLING
268
A0058206289
MONITOR
271
A4108141125
PANELLING19"
289
A6298151014
BRACKET
292
A6298151114
BRACKET
297
A0009870822
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
844
A0069890585
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
