Mercedes A6298361302 - ABDECKUNG BOHRUNG RO

S 417 TC USA EPA 10 629.557

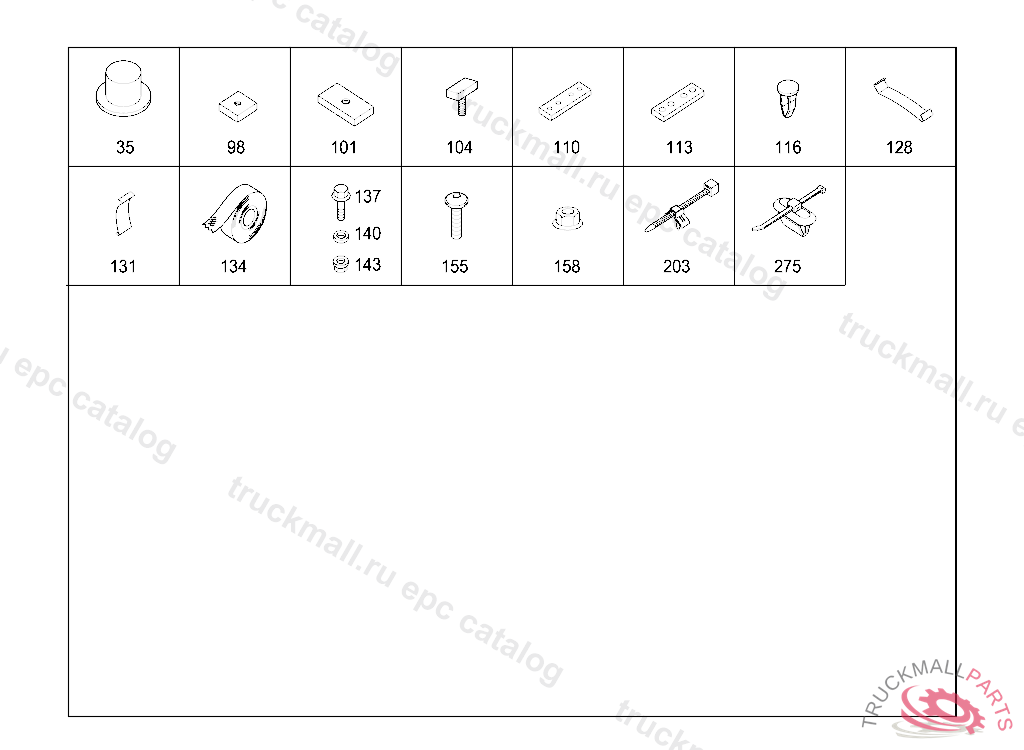

83 HEATING AND VENTILATION - 210 AIR DUCT TO ROOF IL. 1

Поз.
Артикул
Описание
35
A6298361302
COVERING
98
A0009905155
NUTM8
101
A0009960434
SLIDING NUTM8
104
A0029908922
SCREW F CRANKCASEM8X30
104
A0009900108
T-SCREW
104
A0009900008
T-SCREWM 6X16
110
A6298360039
SHACKLE
113
A6298360139
SHACKLE
116
A0009946248
LOCK
128
A6298363502
COVERING
131
A6298363402
COVERING
134
A0008360898
SEAL10X10MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
A0079890185
ADHESIVE TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
A0029892298
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
137
N910105008041
SCREW , Replaced By: N910143008000
140
N000000003250
WASHER BRACKET TO CAB REAR PANEL
140
A0069900740
WASHER
140
N000000003260
WASHER LINE MOUNTING
143
N913023008003
NUT HORN TO BRACKET M8
155
A0009903029
SCREWM8X16
158
N304035005001
NUT
158
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
158
N910112006001
NUT , Replaced By: N913023006001
203
A0018203614
BRACKET
