Mercedes A0009912440 - ABSTANDBUCHSE

S 411 HD MODELLPFLEGE 629.610

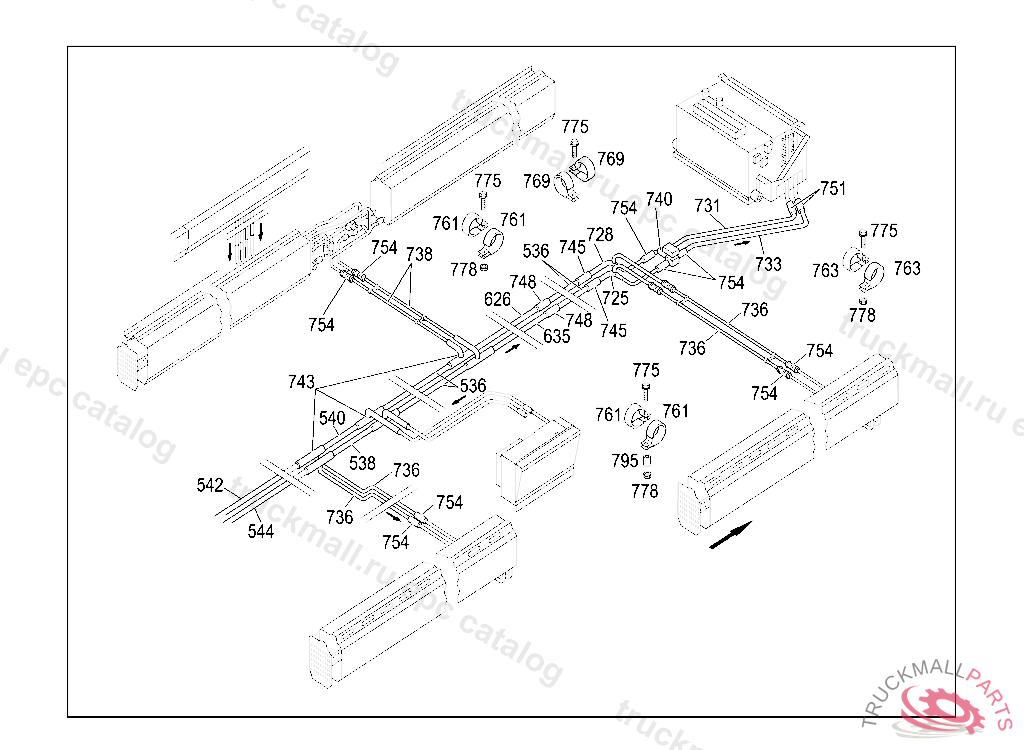

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 13

Поз.
Артикул
Описание
536
A6298325715
HEATING PIPE800MM
538
A6298328415
HEATING PIPED38/430MM
540
A6278322615
PIPE LINE
542
A6298326215
HEATING PIPE1180LG
544
A6298327115
HEATING PIPED38/1120MM
626
A6298327021
PIPE LINE
635
A6298326921
PIPE LINE RETURN D38X2300MM
725
A6298300515
PIPE LINE
728
A6298301616
PIPE LINE RETURN
731
A6298328264
PIPE LINE ADVANCE
733
A6298302263
PIPE LINE RETURN
736
A6298327321
PIPE LINE
738
A6298323015
HEATING PIPE1000MM
740
A0048301684
VALVE THREE-WAY VALVE
743
A6298320056
DISTRIBUTORD38/15/38-248MM
745
N000000004992
HOSE ,D 209702
748
N000000004993
HOSE38X50X130MM
751
N000000004976
HOSE22X31X100MM
751
N000000004975
HOSE22X31X80MM
754
N000000004960
HOSE15X24X100
761
A0019950642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
761
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
761
N916016015202
CLAMP LINE MOUNTING
763
N000000000326
CLAMP22/15, Replaced By: A0019951442
763
N916016022203
CLAMP DELIVERY AND SUCTION LINES TO FRAME
763
A0019951442
MOUNTING CLAMP22/15
769
N000000000350
CLAMP LINE MOUNTING
769
N916016038201
CLAMP , Replaced By: A3829950701
775
N910105006014
SCREW GGVS-COMPONENT IN BATTERY CARRIER M6 X 55
775
N910105006006
SCREW BRACKET AND CLAMP M6X20
775
N910105008039
SCREW , Replaced By: N910143008002
778
N910112006001
NUT , Replaced By: N913023006001
778
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
795
A0009912440
SPACER BUSH
999
A0068207842
SERVO-D.C. W.GEARBOX
