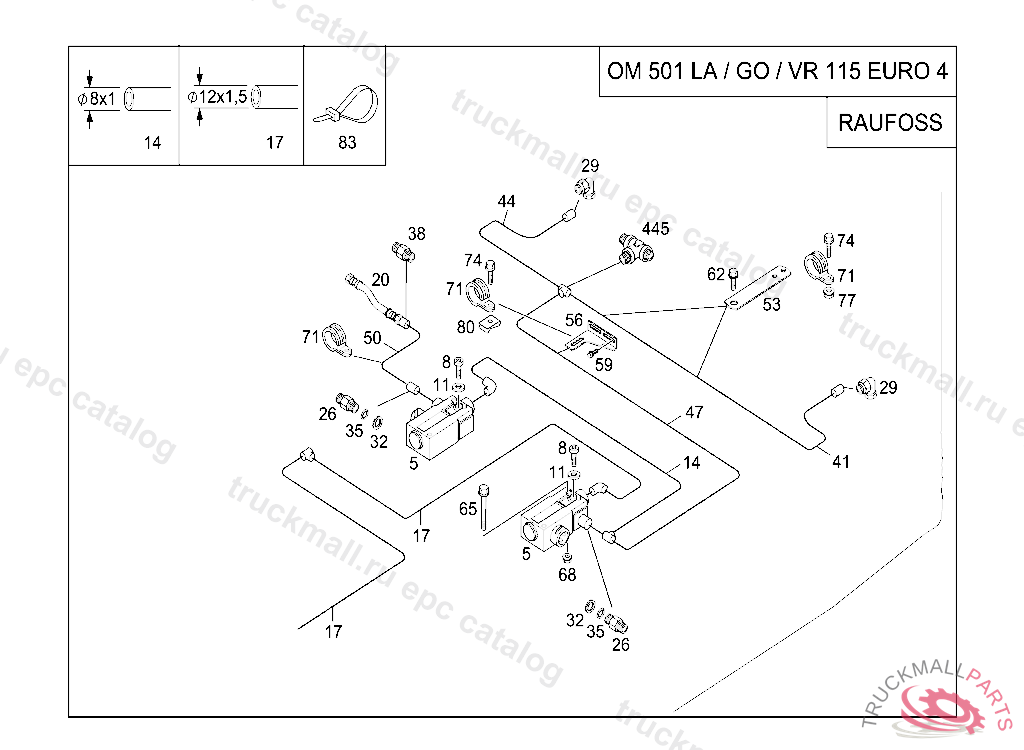

Поз.
Артикул
Описание
5
3-2-WAY PNEUMATIC VALVE (3/2-WAY SOLENOID VALVE)
5
SOLENOID VALVE (3/2-WAY SOLENOID VALVE)
8
SCREW BRACKET TO COVERING
11
SEAL RINGBOSCH
14
PLASTIC PIPE AERATION, ORDER BY THE METER
17
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
20
HOSE DELIVERY LINE TO POWER CYLINDER
26
FITTINGM12X1.5/M14X1.5
29
ELBOW FITTING
32
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
35
SEAL RING RIGHT SPRING-LOAD ACCUMULATOR 10X2.2
38
REDUCTION FITTINGM14X1.5/M12X1.5
38
FITTING PARKING BRAKE VALVE,CONNECTION: "23"
41
LINE BENT 10MM
44
LINE BENT 10MM
47
LINE10MM
50
LINE8MM
53
BRACKET
56
BRACKET
59
SCREW SPEED SENSOR TO REAR AXLE
59
SCREW PIPE ELBOW TO BRACKET M8X12
62
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
65
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
65
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
68
NUT ENGINE MOUNTING M8
71
CLAMP10/15
71
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
71
CLAMP LINE MOUNTING 8/15
74
SCREW BRACKET TO SIDE MEMBER M8X20
74
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
77
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
80
LOCK NUT. SPRING NUT STEP TO ENTRANCE
83
CABLE TIE310X5MM
445
FITTING
445
T-FITTING
