Mercedes A6298308860 - LU KOMPRESSOR / KLIM

S 411 HD MODELLPFLEGE 629.610

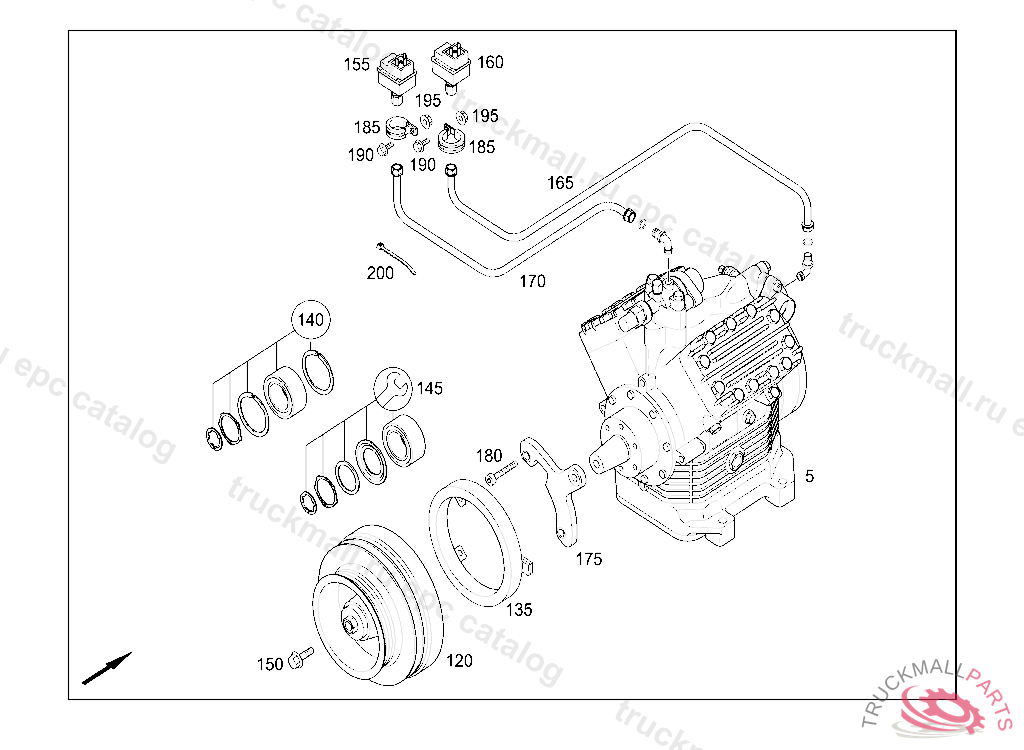

83 HEATING AND VENTILATION - 440 REFRIGERANT COMPRESSOR IL. 1

Поз.
Артикул
Описание
5
A6298308860
COMPRESSOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6298309460
135
A0005436185
MAGNETIC RING
145
A0009806115
GROOVED BALL BEARING REPAIR KIT TO A 001 830 49 72
150
A0039901622
SCREW MAGNETIC COUPLING FA LINNIG
155
A0128200110
PRESSURE MONITOR HIGH PRESSURE 20/25BAR
160
A0108209310
PRESSURE MONITOR LOW PRESSURE 0.2/0.4 BAR
165
A0008323267
COOLANT LINE
170
A0008323167
COOLANT LINE. PIPE LINE HIGH PRESSURE 540MM
185
A0019950642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
185
N916016015202
CLAMP LINE MOUNTING
185
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
190
N910105006006
SCREW BRACKET AND CLAMP M6X20
195
N913023006002
NUT BRACKET TO FIRE WALL
200
A0029972490
CABLE TIE310X5MM
999
A0008351188
GUIDE SIGNR134A
999
A0008351088
GUIDE SIGNDEA SE 55
