Mercedes A0019951910 - ХОМУТ

S 411 HD MODELLPFLEGE 629.610

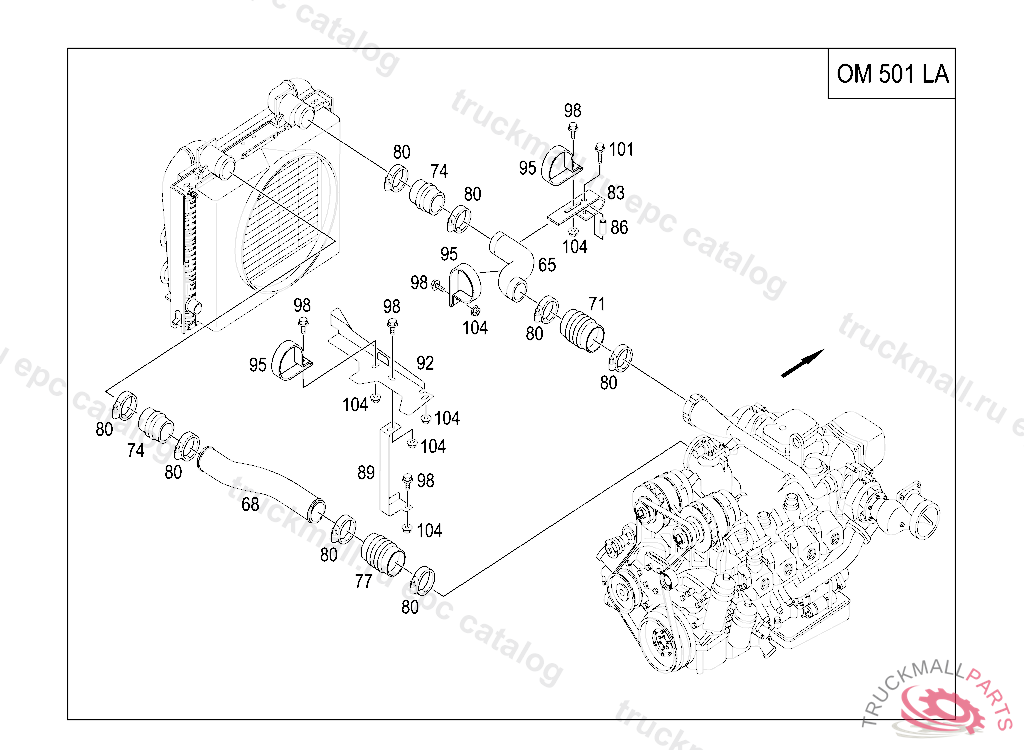

50 RADIATOR - 490 CHARGING AIR LINE IL. 2

Поз.
Артикул
Описание
65
A6295010211
PIPE CHARGING AIR
68
A6295000158
INTERMEDIATE PIPE
71
A0030940882
HOSE CHARGING-AIR-INTERCOOLER/INTAKE-PIPE CONNECTION
74
A0015018882
HOSE
77
A0030940982
ACCORDION HOSE CHARGING-AIR-INTERCOOLER/TURBOCHARGER CONNECTION
80
A0019951910
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
80
A0059971490
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
83
A6295041140
BRACKET
89
A6295014022
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2007
92
A6295014522
BRACKET
95
A6295040333
CLAMP115/25MM
98
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
98
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
101
N910105010021
SCREW , Replaced By: N910105010017
104
N910112010001
NUT , Replaced By: N913023010002
