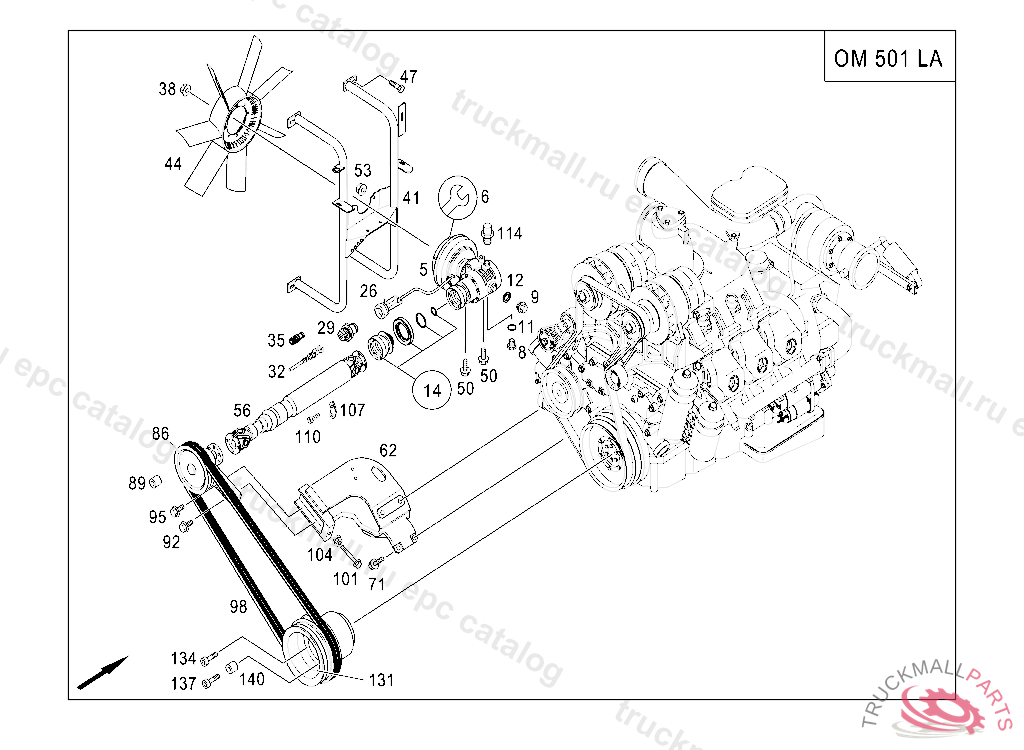

Поз.
Артикул
Описание
5
FAN DRIVE
5
FAN DRIVE
6
RS BALL BEARING , Replaced By: A0009807415
6
RS BALL BEARING
6
RS BALL BEARINGTO A 000 500 41 22
8
SCREW PLUG WATER DRAIN
11
SEALING RING. SEAL RING ENGINE BREATHING
14
RS MITER GEAR
14
RS COVER MITER GEARING TO A 000 500 41 22
26
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
29
PLUG HOUSING 4-POLE
32
CONTACT PIN0.5-1.0 MM2
35
WIRE SEAL GREY 0.5-1.0 MM2
38
NUT
41
SUPPORT
44
FAN
47
SCREWM 10X20
50
SCREW BRACKET TO SUPPORT M 12X25,K 574789
53
NUT HORN TO BRACKET M8
56
SHAFT
62
BRACKET
71
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
71
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
86
BELT TIGHTENER PULLEY
89
MUFFLER
92
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
95
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
98
V-BELT2050 MM
101
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
104
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
107
WASHER PLANE-PARALLEL
110
HEXALOBULAR BOLT WITH HEXALOBULAR SOCKET M8X40
114
BLEEDER VALVETO A 000 500 41 22
131
PULLEY
134
SCREW W HEXAGON SOCKETM8X80
137
STUD. SCREW
140
MUFFLER
