Mercedes A6296821625 - ABDAEMPFUNG

S 411 HD MODELLPFLEGE 629.610

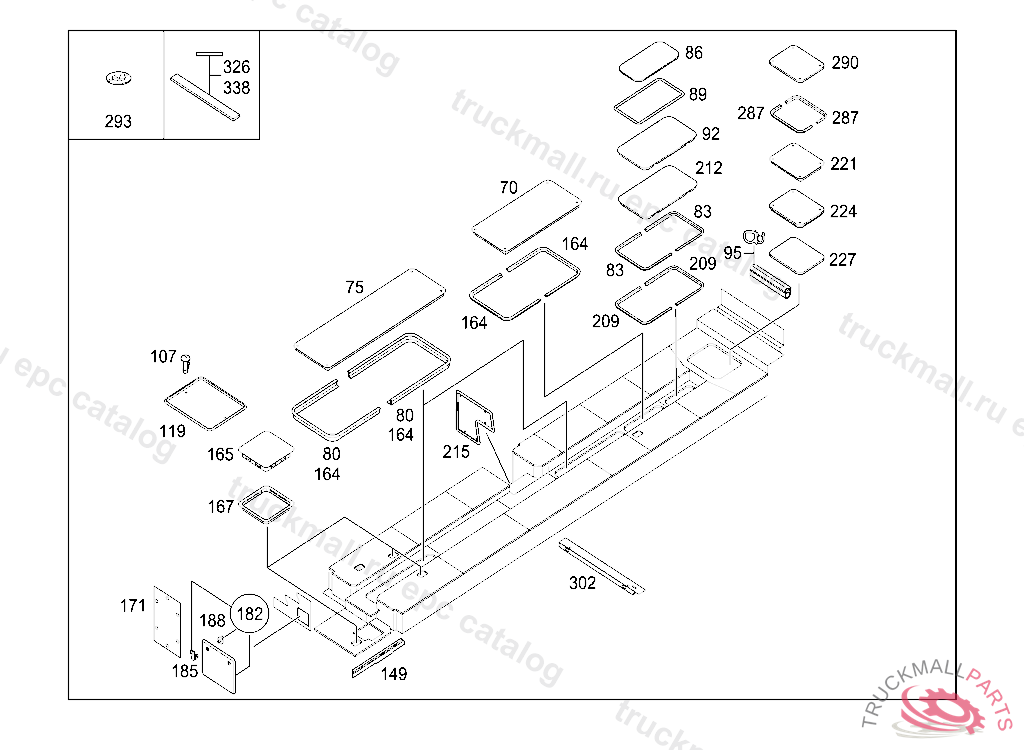

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 6

Поз.
Артикул
Описание
70
A6296842064
FLOOR FLAP
75
A6296841964
FLOOR FLAP
86
A0006820004
INSULATION1000X1000X3MM, ABMESSUNG ANGEBEN
89
A6296842264
FLOOR FLAP
89
A6296842164
FLOOR FLAP5MM
95
A0009979349
GASKET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
107
A0006830212
FASTENER SUPERFIX
119
A6296830110
COVER
149
A6296842978
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
164
A6296841095
EDGING FOR BOTTOM COVER
165
A0006800323
SERVICING COVER
167
A0006830006
FRAME
171
A6296831010
SERVICING COVER
182
A6296801607
CLOSING COVER
185
A0009980695
ROTARY CATCH
188
A0009980595
ROTARY CATCH
209
A6296840895
EDGING
212
A6296842983
INSULATION
215
A6296830310
COVER
221
A6296100488
COVERING
221
A6296101289
COVER
224
A6296823025
INSULATION
227
A6296821625
INSULATION
287
A6296840395
EDGING
290
A6296840064
BOTTOM COVER1082 X 737 X 12 MM
290
A6326840264
FLOOR FLAP
293
A0059908340
CLAMPING DISC30X23X3,5X0,4MM
302
A6296860136
RETAINING RAIL FOR BOTTOM COVER
326
A0019899698
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
338
A0006820001
INSULATION2X12MM/L2000MM
