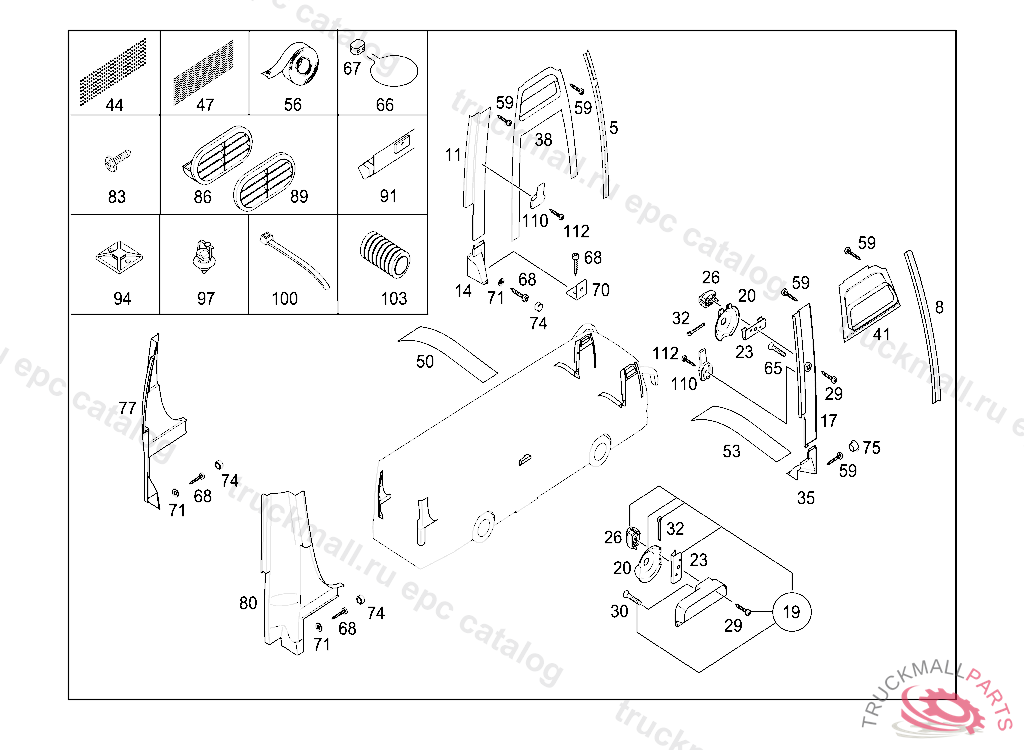

Поз.
Артикул
Описание
5
PANELLING A-PILLAR,LEFT
5
COVER A-PILLAR,LEFT, AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
8
PANELLING A-PILLAR,RIGHT
8
COVER A-PILLAR,RIGHT, AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
11
PANELLING B-PILLAR ON THE LEFT, UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
11
B-PILLAR TRIM B-PILLAR ON THE LEFT, AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
14
B-PILLAR TRIM B-PILLAR ON THE LEFT, AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
14
PANELLING B-PILLAR ON THE LEFT, UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
17
PANELLING B-PILLAR ON THE RIGHT, UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
17
PANELLING B-PILLAR ON THE RIGHT
17
B-PILLAR TRIM B-PILLAR ON THE RIGHT, AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
19
PANELLING , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
20
COVER
23
SPRING
26
MOUNTING
29
TAPPING SCREW BRACKET MOUNTING
30
HEXAL. SOCKET CSK. BOLTM6X10 TX30
32
COTTER PIN , UP TO IDENT NO. A 029714 AND UP TO TRANSMISSION 017740
35
PANELLING B-PILLAR ON THE RIGHT
35
B-PILLAR TRIM B-PILLAR ON THE RIGHT, AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
38
PANELLING
38
TRIM SIDE WALL AREA , AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
41
PANELLING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.03.08
41
TRIM SIDE PANEL , AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
41
PANELLING , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 29.02.08
44
SOFT STRAP25 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
HOOK STRAP25 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
50
PANELLING LALINEA
53
PANELLING LALINEA
56
SEALING STRIP
59
TAPPING SCREW3.5X19
65
SCREWM6X20
65
HEXAL. SOCKET CSK. BOLTM6X10 TX30
66
SEAL WIRE
67
LEAD SEALD9MM
68
SHEET METAL SCREW. SCREWST25X 6 T20
70
ANGLE
71
WASHER4MM
74
LOCKING CAP
77
PANELLING
77
TRIM REAR PANEL AREA , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
77
TRIM REAR PANEL AREA , AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
80
TRIM REAR PANEL AREA , AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
80
PANELLING
80
TRIM REAR PANEL AREA , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
83
TAPPING SCREW2,9X9,5
86
COVERING
89
COVERING
91
COVER LENGTH: 5560MM
94
PLATE CABLE HARNESS MOUNTING
97
CABLE STRAP LINE MOUNTING 260X3.3MM
100
LOOM TIE LINE MOUNTING 150 X 3,6 MM
103
INSULATING HOSE AUXILIARY HEATER 7.5 MM, ORDER BY THE METER
110
CLOTHES-HOOK , .......INO.7E86I.......I.......I II
112
TAPPING SCREW3.5X25
999
ADHESIVE
