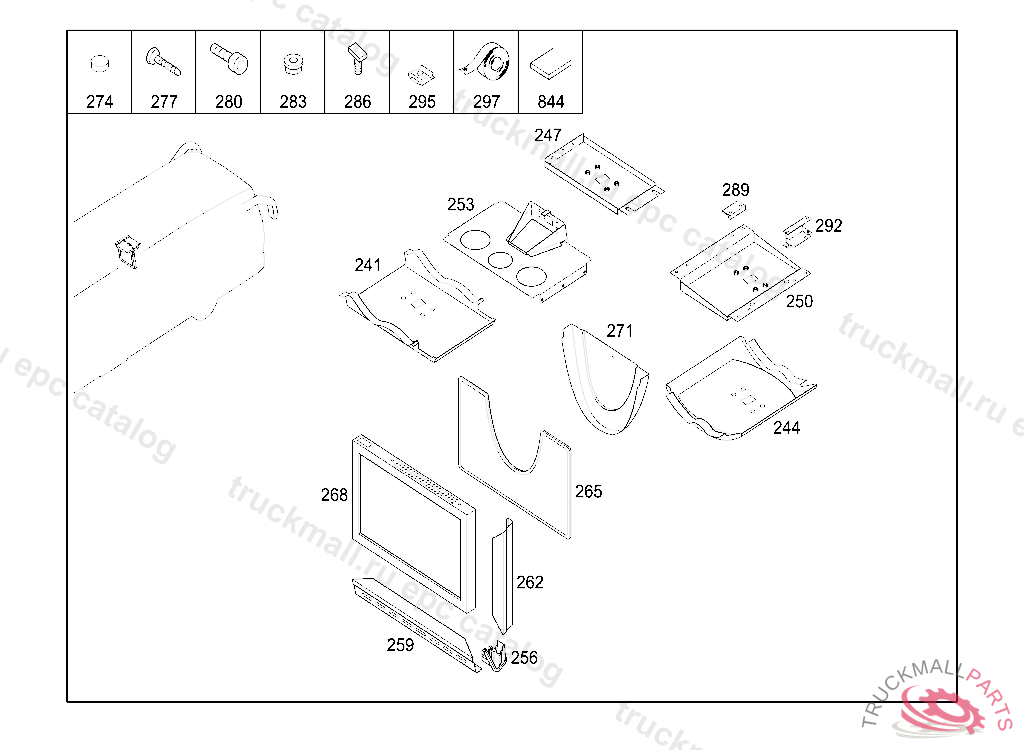

Mercedes A6298101913 - ZB HALTER

S 411 HD MODELLPFLEGE 629.610

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 6

Поз.
Артикул
Описание
241
A6298141025
PANELLING MONITOR 12.1''
244
A6298144225
PANELLING
244
A6298144125
PANELLING
247
A4108100313
BRACKET
250
A6298101913
BRACKET
250
A6298101813
BRACKET
253
A4108100014
BRACKET
256
A4108250075
ORNAMENTAL COVER
259
A4108270024
FRAME
262
A4108270124
FRAME
265
A4108141225
PANELLING
268
A0058206289
MONITOR
271
A4108141125
PANELLING19"
274
A0009876945
CAP
277
A0059905036
SCREW4.2X16
277
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
280
N000000007000
SCREW RELAY SOCKET TO APPARATUS PLATE M5X10
280
A0029901020
SCREW
280
A0039909012
SCREW PRESSURE SENSOR M6X20 TX30 TO A 003 431 62 06
280
N000000001152
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
280
N000000002696
SCREW MOUNTING, SUPPORT PLATE 3X10
280
A0019909920
SCREWM6X12 TX30
283
N000000006001
RETAINING RING. SCREWM 6
286
A6299900008
T-SCREWM 6X16
289
A6298151014
BRACKET
292
A6298151114
BRACKET
295
A0049941445
LOCK NUT. LOCK PANELLING TO BUMPER
297
A0009870822
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
844
A0069890585
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
999
A6298101164
PANELLING FOLDING
