Mercedes A6326371995 - ZWISCHENLAGE

S 415 HD MODELLPFLEGE 629.612

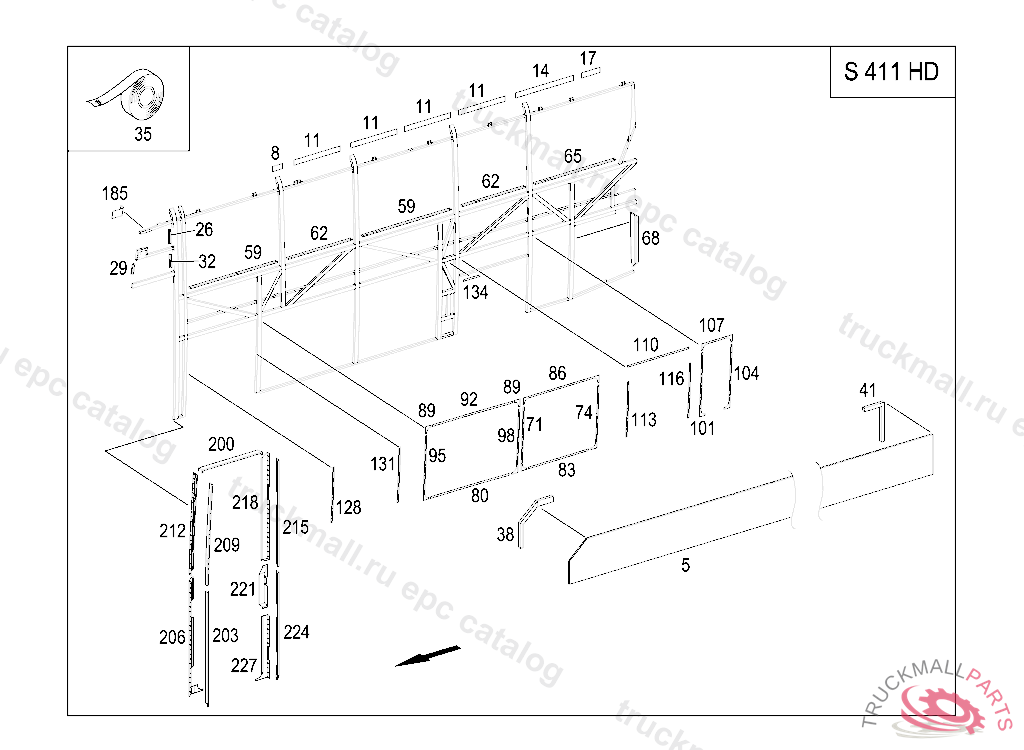

63 SIDE PANELS - 420 LEFT SIDE PANELLING IL. 1

Поз.
Артикул
Описание
8
A6296370979
PANELLING AIR INTAKE 199MM
11
A6296370579
PANELLING
14
A6296370179
PANELLING AIR INTAKE 199MM
26
A6296020912
ANGLE
29
A6296021212
ANGLE
32
A6296021012
ANGLE275LG
35
A0079894185
ADHESIVE TAPE
35
A0069890485
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
38
A6296373395
PAD
41
A6296373495
PAD , Replaced By: A6326371995
41
A6326371995
INTERMEDIATE LAYER STRAIGHT VERSION
59
A4106370272
ANGLE SIDE WINDOW PANES 1875LG
68
A6326373012
ANGLE LATERAL
89
A6296370015
REINFORCEMENT
95
A6296379872
ANGLE LEFT
98
A6296379972
ANGLE RIGHT
110
A6296379272
ANGLE1272MM
113
A6296376612
ANGLE LATERAL
113
A6296379872
ANGLE LEFT
116
A6296376512
ANGLE
116
A6296370512
ANGLE1090MM
128
A6296376612
ANGLE LATERAL
131
A6296376512
ANGLE
185
A6296379992
ANGLE
200
A6296371234
RAIL ,WKK 629410 13 000145
203
A6296372093
ANGLE
206
A6296371993
ANGLE
209
A6296378492
ANGLE ,WKK 629410 13 000145
212
A6296370193
ANGLE
215
A6296378592
ANGLE ,WKK 629410 13 000145
218
A6296370293
ANGLE
221
A4106373012
ANGLE INSIDE
224
A6296379412
ANGLE OUTSIDE
227
A6296370093
ANGLE INSIDE
