Mercedes N000000000846 - ГЛУХАЯ ЗАКЛЕПКА

S 415 HD MODELLPFLEGE 629.612

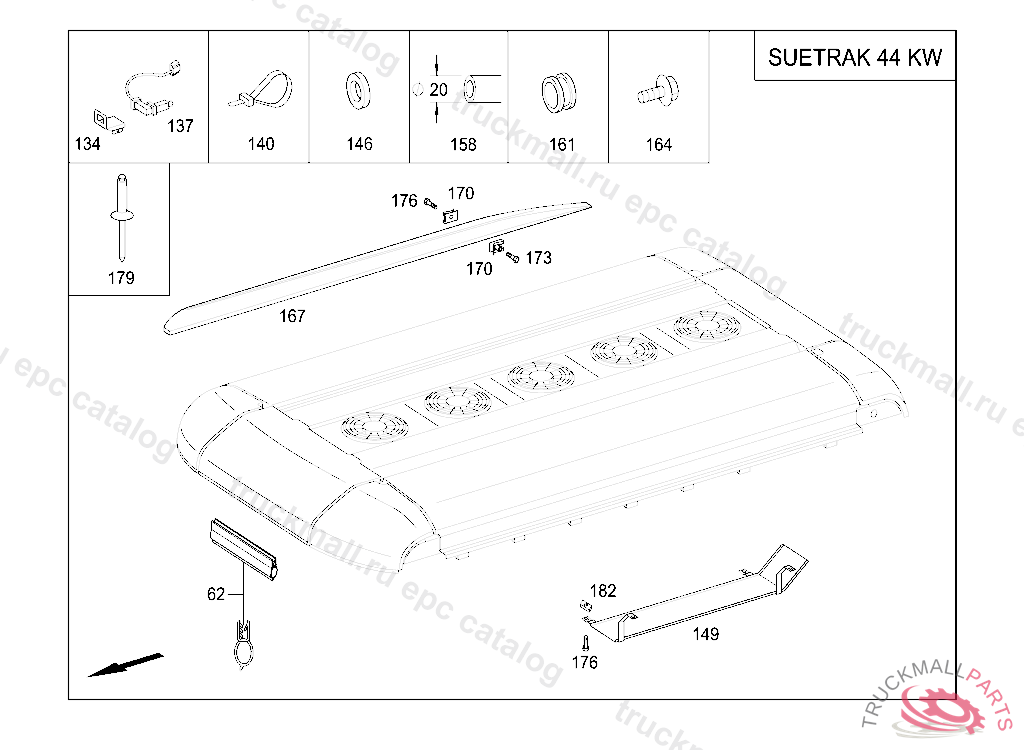

83 HEATING AND VENTILATION - 094 AIR CONDITIONER MAKE SUETRAK IL. 1

Поз.
Артикул
Описание
62
A0089870352
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
A6298350314
BRACKET
137
A0078200810
TEMPERATURE SENSOR
140
A0029972390
CABLE TIE , Replaced By: A0049971890
146
N000000003250
WASHER BRACKET TO CAB REAR PANEL
149
A6298300266
AIR BAFFLE LEFT
149
A6298300366
AIR BAFFLE RIGHT
158
A0009871843
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
161
A0029870433
GROMMET , Replaced By: A0009876441
164
N910105008039
SCREW , Replaced By: N910143008002
167
A6298360206
PANELLING LEFT
170
A0049941945
NUTM8
173
N000000000912
SCREW-AND-WASHER ASSEMBLYM8X20
176
N000000001138
HEXALOBULAR BOLT FASTENING OF WIRING HARNESS AT TRANSMISSION M8X16
176
A0009901129
SCREWM 8X22, T40
179
N000000000846
BLIND RIVET4X12
182
A0009960434
SLIDING NUTM8
999
A0028350147
FILTER
