Mercedes A0019906954 - "UEBERWURFMUTTER 3/4

S 415 HD MODELLPFLEGE 629.612

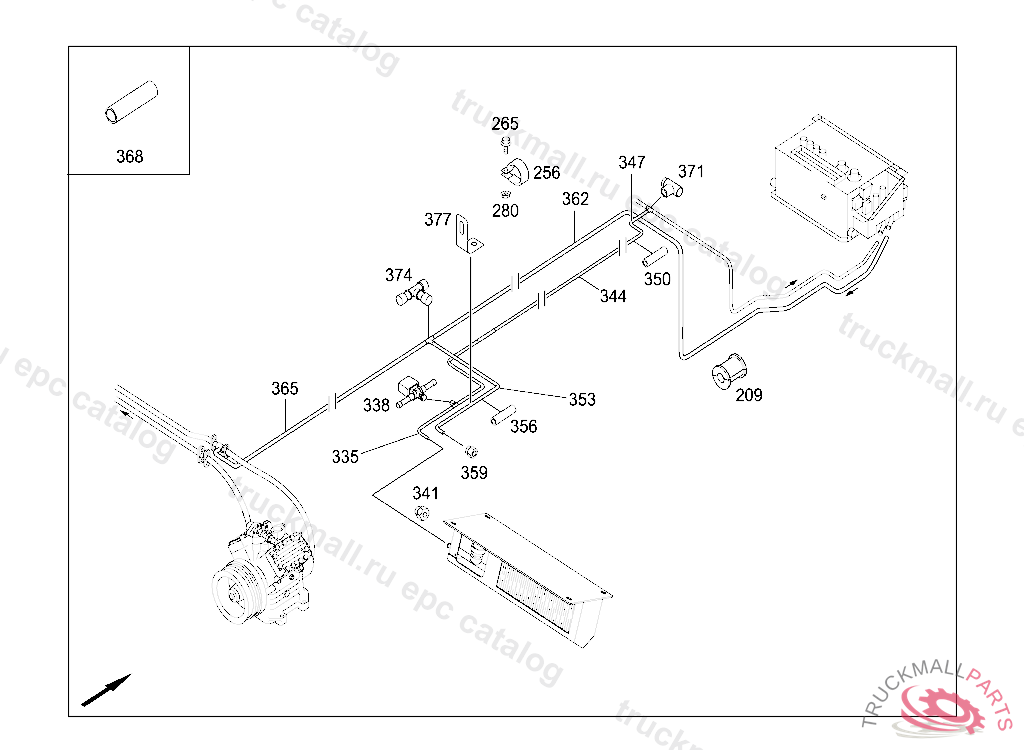

83 HEATING AND VENTILATION - 110 REFRIGERANT LINES IL. 4

Поз.
Артикул
Описание
209
A6328330417
BUSHING
256
A0019951442
MOUNTING CLAMP22/15
256
A0019951642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
256
N000000000326
CLAMP22/15, Replaced By: A0019951442
256
N000000006124
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
265
N910105006006
SCREW BRACKET AND CLAMP M6X20
280
N910112006001
NUT , Replaced By: N913023006001
335
A6298309617
PIPE LINED10
338
A0008322472
VALVE TWO-WAY ALCO
341
A0019907854
NUT
344
A6328326719
REFRIGERANT LINE
347
A6298321964
REFRIGERANT LINED10, Replaced By: A6298303363
347
A6298303363
REFRIGERANT LINED10
350
A0008321154
INSULATING HOSE10X24MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
353
A6298309717
PIPE LINE
356
A0008321254
INSULATING HOSE12X26MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
359
A0019906954
NUT3/4UNF,THERMO KING
362
A6328326819
PIPE LINE
365
A6328326919
PIPE LINE
368
A0008321454
INTERMEDIATE PIECE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
371
A4079905270
T-FITTING
374
A0019973874
T-FITTING
377
A6344920541
BRACKET EXHAUST PIPE
