Mercedes A0048306084 - Клапан расширительный кондиционера

S 415 HD MODELLPFLEGE 629.612

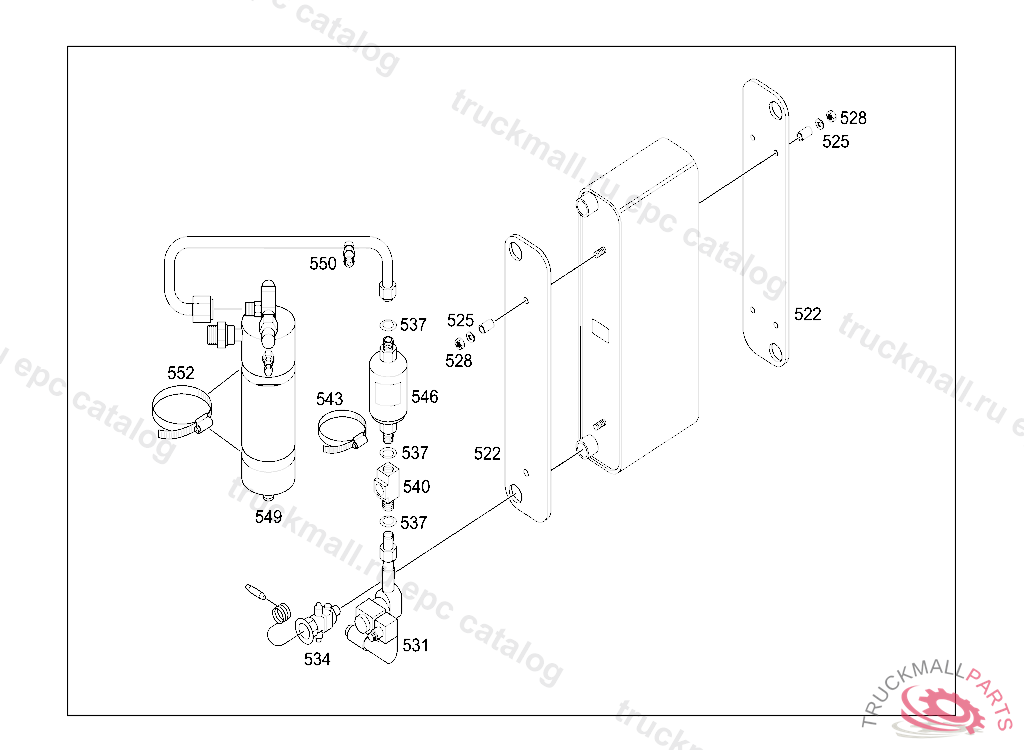

83 HEATING AND VENTILATION - 090 AIR CONDITIONER IL. 6

Поз.
Артикул
Описание
522
A0008351081
INSULATION HEAT EXCHANGER 10MM
525
N000125008445
WASHER PUMP TO CONSOLE
528
N913023008003
NUT HORN TO BRACKET M8
531
A0098301815
REFRIGERANT LINE WITH SOLENOID VALVE
531
A0038301284
VALVE , Replaced By: A0098301815
534
A0038300384
VALVE , Replaced By: A0048306084
534
A0048306084
EXPANSION VALVE
537
A6278350198
SEALNW 13
540
A0008350861
SIGHT GLASSHANSA
543
N000000000674
CLAMP HOSE 70-90X13 MM
546
A0018303958
EVAPORATOR7/8"
549
A0008303283
TANK REFRIGERANT, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)04/2002
549
A0008304183
REFRIGERANT COLLECTOR
550
A0088306915
PIPELINE WITH PRESSURE RELIEF VALVE
550
A0078308615
PIPELINE LESS VALVE, Replaced By: A0088306915
552
N000000000645
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
999
A0005462318
COIL SOLENOID VALVE
999
A0008351588
ADHESIVE LABEL DO NOT ENTER
999
A0009894784
INSULATING TAPE REFRIGERANT 2X60MM
999
A0019972373
FITTING
999
A0079971790
LOOM TIE
999
A6298301660
AIR CONDITIONERWEBASTO
