Mercedes A6296370212 - WINKEL

S 415 HD MODELLPFLEGE 629.612

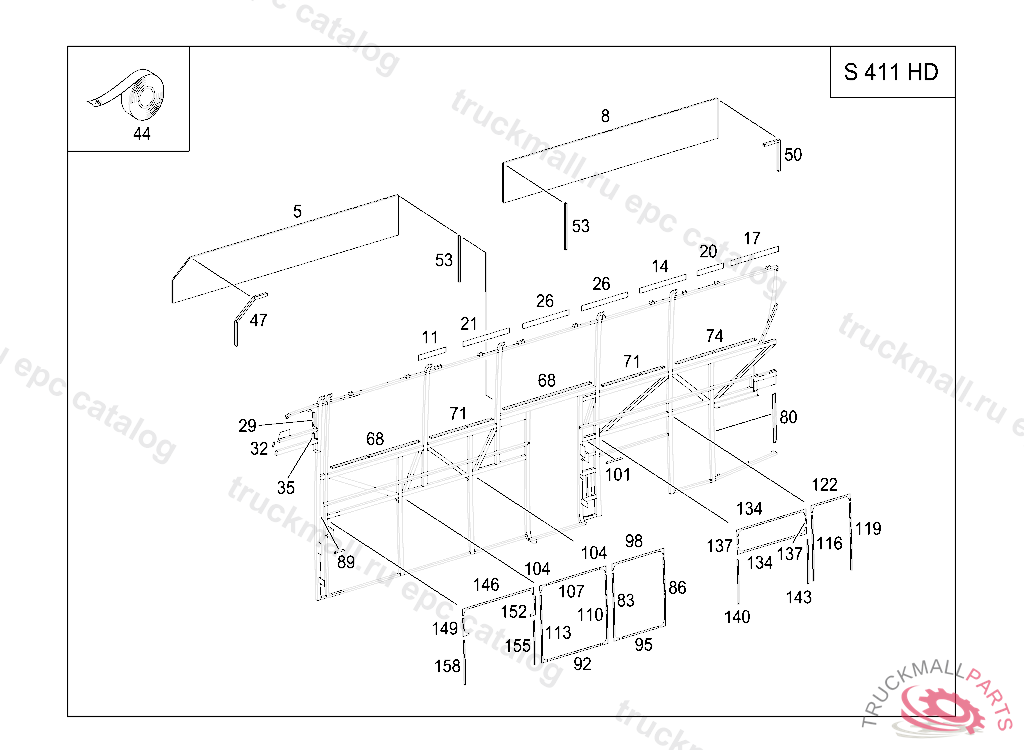

63 SIDE PANELS - 450 RIGHT SIDE PANELLING IL. 1

Поз.
Артикул
Описание
11
A6296370979
PANELLING AIR INTAKE 199MM
14
A6296370579
PANELLING
17
A6296370179
PANELLING AIR INTAKE 199MM
29
A6296020912
ANGLE
32
A6296021212
ANGLE
35
A6296021012
ANGLE275LG
44
A0069890485
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
A0079894185
ADHESIVE TAPE
47
A6296373395
PAD
50
A6296373495
PAD , Replaced By: A6326371995
50
A6326371995
INTERMEDIATE LAYER STRAIGHT VERSION
53
A6296370595
PAD
68
A6276371872
ANGLE
80
A6296377012
ANGLE1000LG
83
A6296370512
ANGLE1090MM
86
A6296370712
ANGLE LATERAL 1090MM
104
A6296370015
REINFORCEMENT
110
A6296379872
ANGLE LEFT
113
A6296379972
ANGLE RIGHT
116
A6296370012
ANGLE
119
A6296370212
ANGLE1090LG
134
A6296373112
ANGLE TOP
137
A6296378772
ANGLE
140
A6296376512
ANGLE
143
A6296376612
ANGLE LATERAL
146
A6296373112
ANGLE TOP
146
A6296373592
ANGLE1074LG
149
A6296379572
ANGLE LATERAL
152
A6296379472
ANGLE LATERAL
155
A6296376612
ANGLE LATERAL
158
A6296376512
ANGLE
