S 415 HD MODELLPFLEGE
629.612
58 TOOLS AND ACCESSORIES
120 TOOLS,ACCESSORIES AND SIGNS IL. 1

Mercedes N304017008021 - АВТОЗАПЧАСТЬ

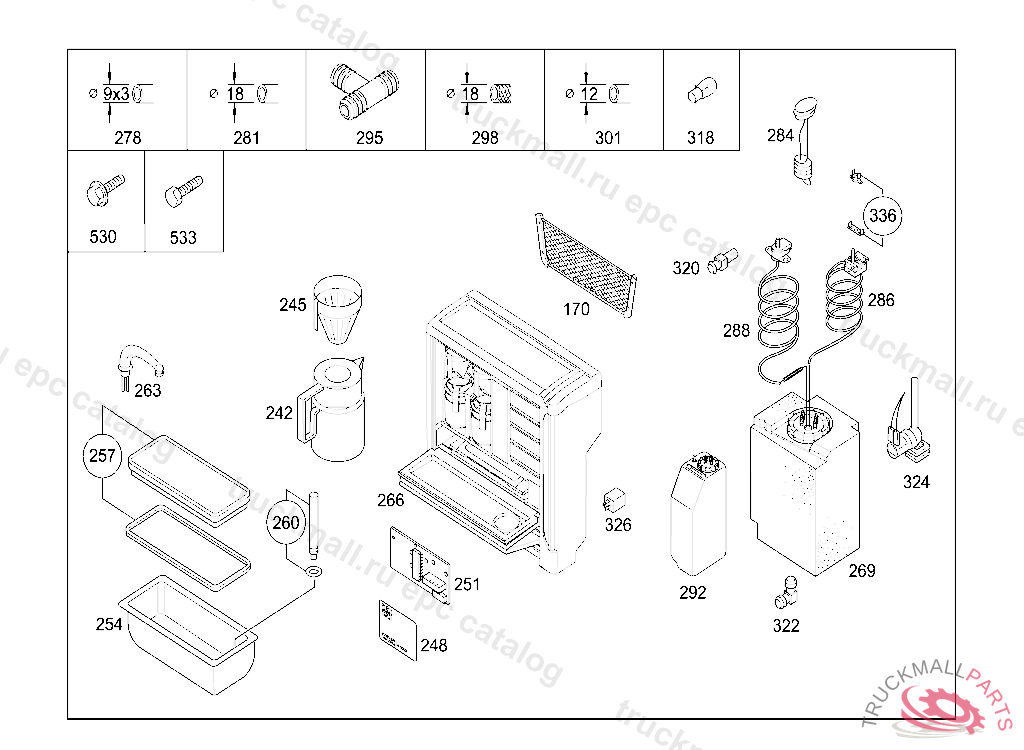

S 415 HD MODELLPFLEGE 629.612

58 TOOLS AND ACCESSORIES - 120 TOOLS,ACCESSORIES AND SIGNS IL. 1

Поз.
Артикул
Описание
170
A0008400220
ROOF RACK
170
A6329700092
LUGGAGE NET
242
A0008450523
THERMOS BOTTLE
245
A6268660065
FILTER BOWL
248
A0008271457
OPERATING UNIT WITH DISPLAY
251
A0038205426
CONTROL UNIT
254
A0008204006
ELEKTROKOCHER SAUSAGE COOKER 8,5 LTR
257
A0008451225
COVER FOR COOKER WITH GASKET
260
A0008430015
PLUG
263
A0008660662
WATER FAUCET
266
A0008401507
FLAPZB KOMPLETT
269
A0008204106
BOILERVST
278
A0018320323
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
281
A0008323094
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
284
A0008207598
HEATING ELEMENT
286
A0018354306
SWITCH THERMOSTAT
286
A6268200610
SWITCH OVERHEATING
288
A6268200410
SWITCH
292
A0008601860
RESERVOIR
295
A0009974384
DISTRIBUTOR RELAY VALVE,CONNECTION: "10"
298
A0008323194
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
301
A0008323294
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
318
A6705440094
BULB
320
A6268660152
VALVE (CHECK VALVE)
322
A0008329625
PIPE SOCKET
324
A0018201226
SOLENOID VALVE
326
A0009823723
RELAY24V/50A
326
A0009823923
RELAY
326
A0018212847
RELAY24V/50A, Replaced By: A0009823723
326
A0008218947
RELAY24V / 40A, Replaced By: A0009823923
336
A6268200310
SWITCH
530
N910105008060
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
533
N304017008021
SCREW PIPE CLAMP
999
A6298405660
KITCHENETTE
999
A6298404160
KITCHENETTE
999
A0118200110
SWITCH
999
A0038201326
CONTROL UNIT
999
A0035454605
CONTROL UNIT CENTRAL LUBRICATION
999
A0035404605
CABLE HARNESS
999
A0029971468
CONNECTOR
999
A0018204701
INTERIOR LAMP
999
A0009977271
FITTING
999
A0009970404
THROTTLE
999
A0009942403
WASHER
999
A0009918070
CLIP
999
A0008453323
CONTAINER WATER RESERVOIR
999
A0008452223
CONTAINER
999
A0008451214
BRACKET LEFT
999
A0008450058
VALVE
999
A0008430714
CUP DISPENSER
999
A0008430614
CUP HOLDER
999
A0008430330
COVERING
999
A0008400055
TAKE-UP DEVICE
999
A0008360252
HINGE
999
A0008321259
FITTING ELBOW FITTING
999
A0008231711
PLATE
999
A0008207898
HEATING ELEMENT
999
A0008204706
BOILER
999
A0008203906
BOILERVST
999
A0008203206
CONTINUOUS-FLOW HEATER
999
A0008203106
CONTINUOUS-FLOW HEATER
999
A0008202606
BOILER
999
A0008201637
CLUTCH
999
A0008200869
CABLE HARNESS
999
A0008130437
COVERING ASHTRAY
