Mercedes N000137008212 - Гайка

290 GDT 461.366 TO CHASSIS 144225

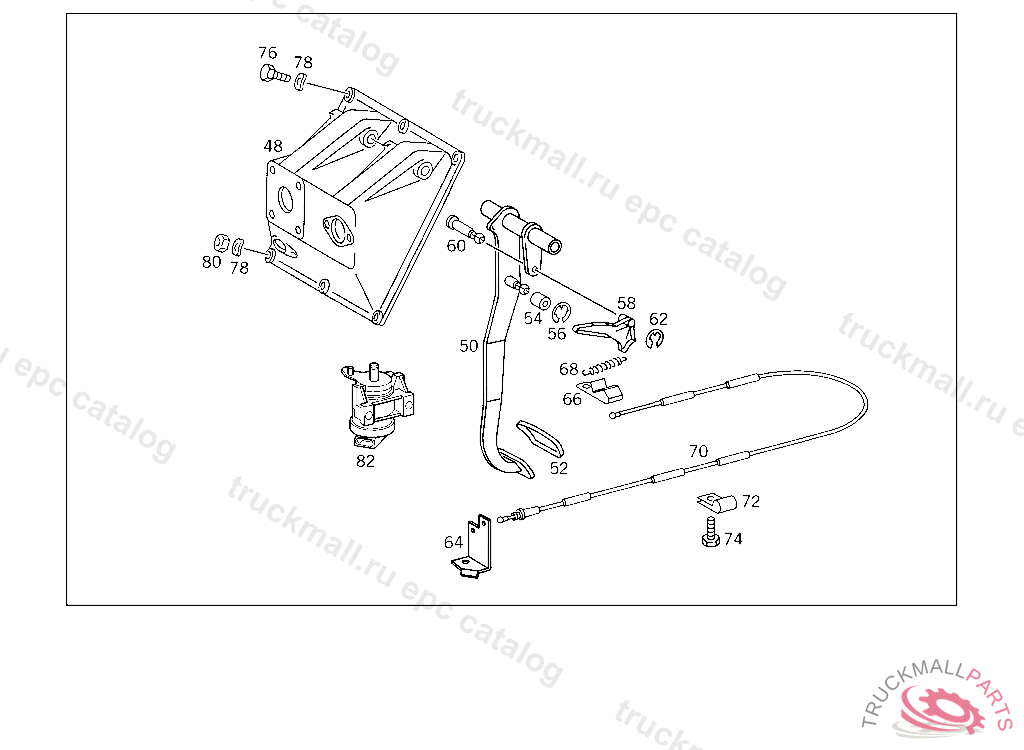

29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING IL. 1

Поз.
Артикул
Описание
48
A4632940401
BEARING BRACKET
50
A4632903601
PEDAL (BRAKE PEDAL)
52
A1232910082
PAD BRAKE PEDAL
54
A1242920235
ROLLER
56
N006799004001
LOCK PLATE
58
A1402921031
LEVER PARKING INTERLOCK MECHANISM DEPENDING ON BRAKE PEDAL
60
A4612770074
PIN
62
N000471006001
LOCK RING SLIDE TO RETAINING RAIL
64
A4612770340
BRACKET PEDAL BRACKET
66
A4612910040
BRACKET SHIFT LOCK CABLE ON HEATING HOUSING
68
A2109930610
SPRING BETWEEN BRACKET AND LEVER
70
A4612900085
CABLE AUTOMATIC TRANSMISSION
72
N916016005100
CLAMP WIRE CABLE TO FLOOR SHIFT MECHANISM,F134112 WITH PARKING INTERLOCK MECHANISM
74
N000933005058
SCREW IN CASE OF SUBSEQUENT INSTALLATION
76
N000931008047
SCREW , Replaced By: N304017008018
76
N000931008251
SCREW REAR AXLE REGULATING SOLENOID VALVE
78
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
78
N000137008204
SPRING WASHER , Replaced By: N000137008212
80
N304032008006
NUT
82
A4615420317
SENDER UNIT (PEDAL VALUE SENSOR)
