Mercedes A0005014615 - Крышка расширительного бачка 0.7bar с цепью MB ZX113947

S 415 HDH MODELLPFLEGE 629.623

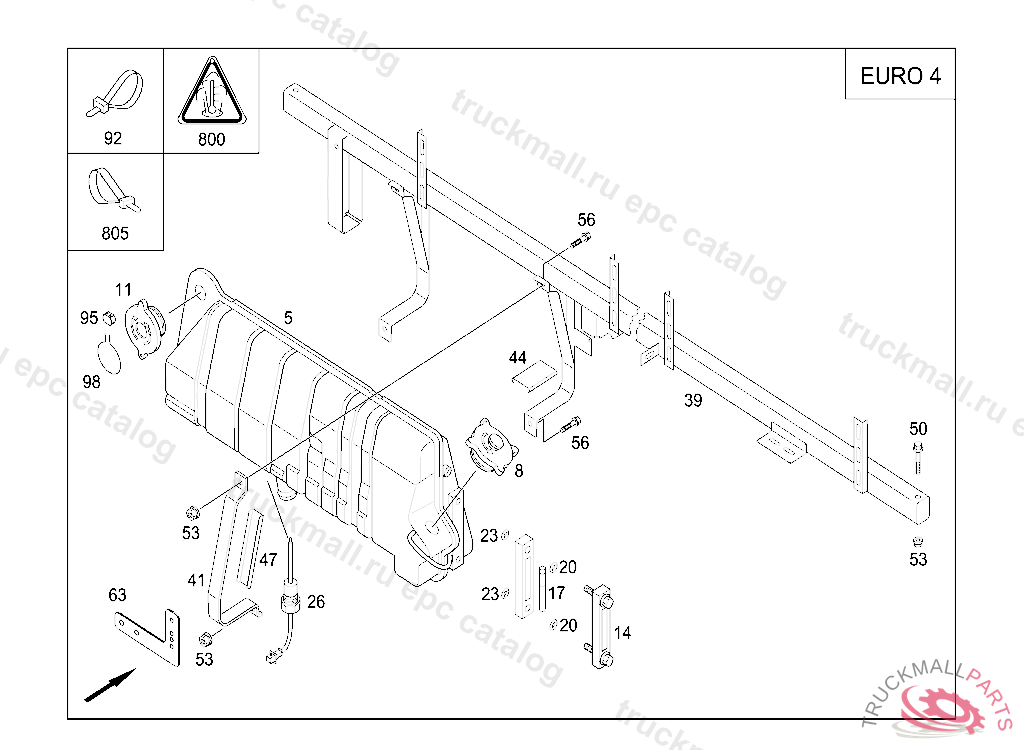

50 RADIATOR - 260 EXPANSION TANK

Поз.
Артикул
Описание
5
A6295000849
TANK EXPANSION TANK
5
A6295000049
TANK EXPANSION TANK
8
A0005014615
RADIATOR CAP FILLER NECK
8
A0005018515
RADIATOR CAP0,7 BAR
11
A0005018815
RADIATOR CAP1 BAR
11
A0005018615
RADIATOR CAP0,7 BAR
11
A0005015815
RADIATOR CAP FILLER NECK
14
A0009971538
SIGHT GLASSTO 357 500 10 49
17
A0009971638
SIGHT GLASSTO 357 500 10 49
20
Q4753914000
ROUND SECTION SEAL RING10 X 1.5 MM
23
Q4753908000
ROUND SECTION SEAL RING15.6 X 1.78 MM
26
A0025404417
FILL-LEVEL SENSOR COOLING WATER LEVEL CONTROL, Replaced By: A0035401717
26
A0035401717
FILL-LEVEL SENSOR COOLING WATER LEVEL CONTROL
39
A6295001027
SUPPORT
41
A6295040033
STRAP
44
A0009878014
RUBBER PROFILEL360MM
47
A0009878114
RUBBER PROFILEL298MM
50
N910105008064
SCREWM6X65
53
N913023008003
NUT HORN TO BRACKET M8
56
N910105008060
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
63
A6325010120
BRACKET
92
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
95
A0009882370
LEAD SEALD9MM
98
N001367000004
SEAL WIRE
800
A6285842607
INFORMATION LABEL TEMPERATURE, RIGID PVC
805
A0019979490
CABLE TIE , Replaced By: A0019978390
