Mercedes A0008350656 - GEHAEUSEDECKEL / ZYL

S 415 HDH MODELLPFLEGE 629.623

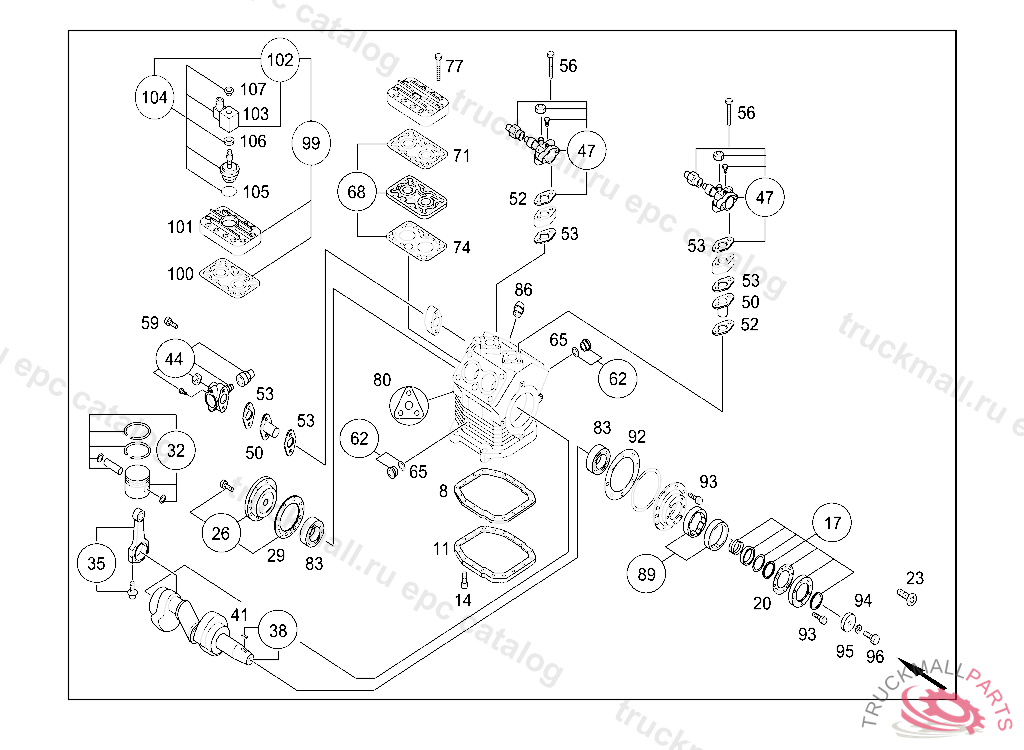

83 HEATING AND VENTILATION - 440 REFRIGERANT COMPRESSOR IL. 2

Поз.
Артикул
Описание
8
A0008351823
WEATHERSTRIP
11
A0008351411
PLATE
14
N910105008012
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
17
A0001300832
BEARING CAP REPAIR KIT
20
A0011313780
GASKET
23
N007991010007
SCREW AUXILIARY FRAME MOUNTING
26
A0001310465
OIL PUMP (PARTS KIT),OIL PUMP
29
A0011319980
GASKET
32
A0001303817
PISTON COMPLETE, Replaced By: A0001304417
35
A0001303316
CONNECTING ROD
38
A0001300514
CRANKSHAFT REPAIR KIT
41
A0001314108
SPRING
50
A0001310834
STRAINER ON SUCTION SIDE
53
A0021310180
GASKET"KONVEKTA", Replaced By: A0008312998
53
A0008312998
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
56
N910105010015
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
59
N910105010019
SCREW TRANSMISSION CASE TO TRANSMISSION CASE M 10X65
62
A6278350261
SIGHT GLASS
65
A0299973348
SEAL RING
68
A6278350111
VALVE
71
A0021310480
GASKET
74
A0008320998
SEAL , Replaced By: A0008330498
77
N910105010052
HEXAGON HEAD BOLTM10X70
80
A6278320099
GASKET KIT
83
A0109814301
CYLINDR. ROLLER BEARING
86
N000910022000
SCREW PLUG BOTTOM
99
A0008351476
REGULATOR
100
A0021310480
GASKET
101
A0008350656
COVER
102
A0001312188
MAGNET
103
A0001312288
MAGNET COIL
104
A0008320685
VALVE INSERT
105
A0149973245
SEAL RING48X2,5MM
106
A0019903882
WASHER30X16X2,0MM
107
A0009908852
NUTM15X1
