Mercedes A6296251114 - HALTER MI

S 415 HDH MODELLPFLEGE 629.623

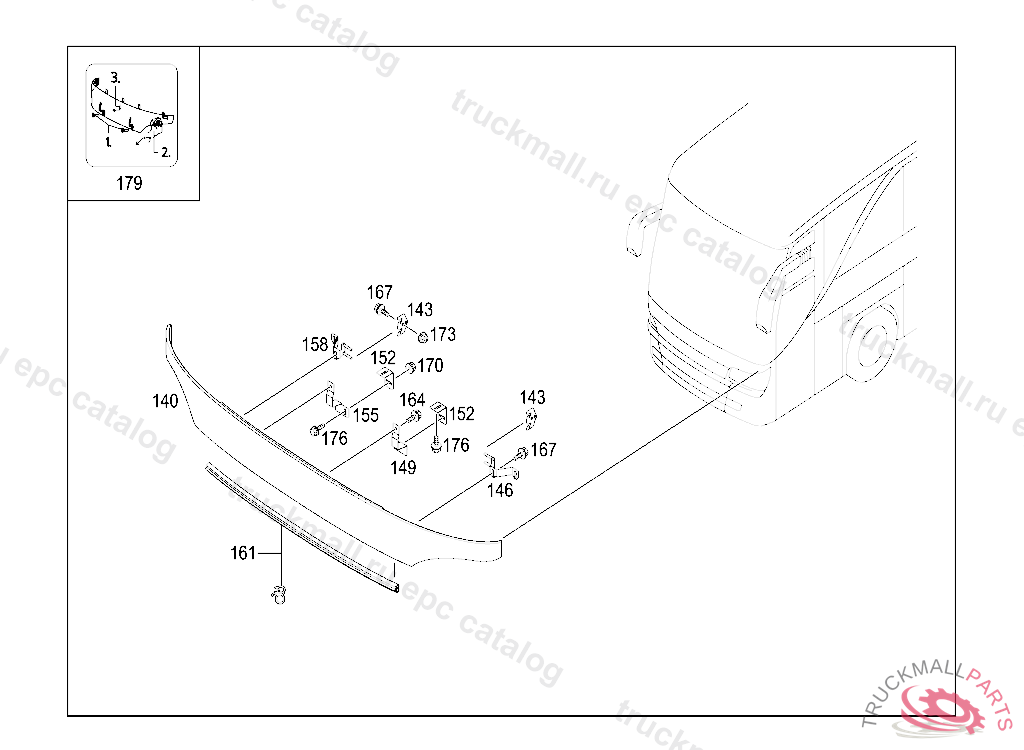

62 COWL,FRONT PANEL - 030 FRONT PANEL IL. 2

Поз.
Артикул
Описание
140
A6296270008
COVERING
143
A6296201814
BRACKET
146
A6296200715
CONSOLE
149
A6296251014
BRACKET , Replaced By: A6296251114
152
A6296250914
BRACKET
155
A6296251114
BRACKET , Replaced By: A6296254514
158
A6296200815
CONSOLE
161
A0009871762
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
164
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
167
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
167
N910105006004
SCREW , Replaced By: N914146006102
170
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
173
N910112006001
NUT , Replaced By: N913023006001
176
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
179
A6296280200
GUMMED LABEL
