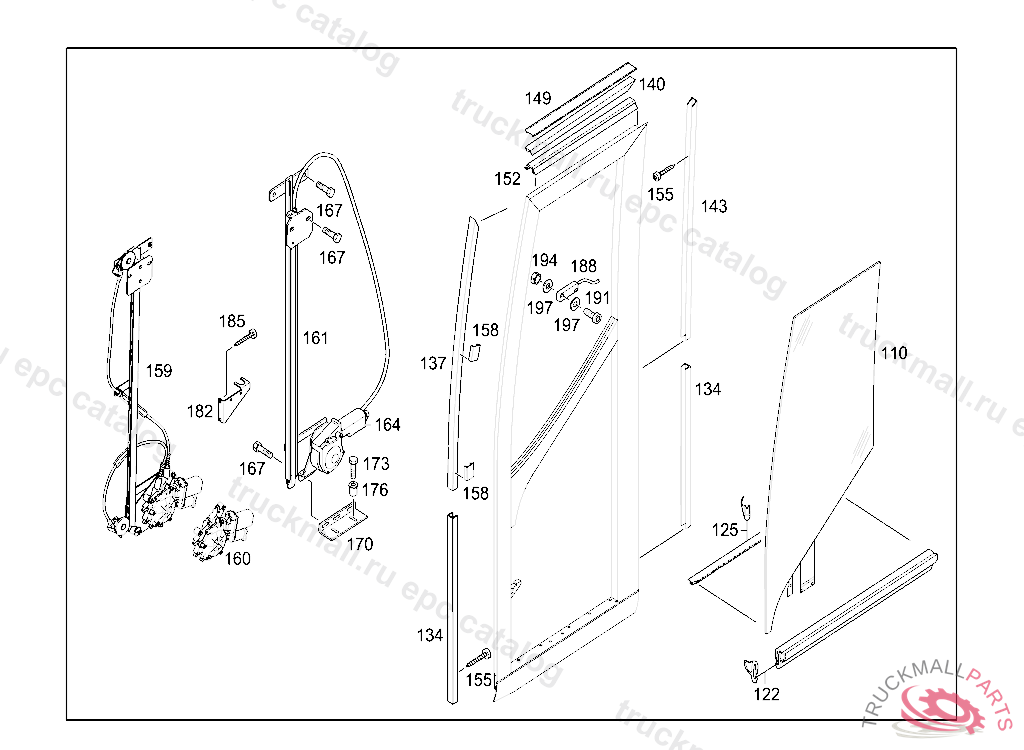

Поз.
Артикул
Описание
110
GLASS PANE
122
RUBBER SECTION848LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
SEAL INSIDE
134
WINDOW GUIDE FRONT BOTTOM
137
WINDOW GUIDE FRONT TOP
140
WINDOW GUIDE TOP
143
WINDOW GUIDE REAR TOP
149
RUBBER STRIPL4300MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
152
WINDOW RUBBER RUNL4300MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
155
TAPPING SCREW3,5X13
158
WINDOW GUIDE , EXHAUST STOCK OF OLD PART NUMBER FIRST
158
GUIDE JAW , Replaced By: A4107250029
159
WINDOW LIFT
160
ELECTRIC MOTORTO A 000 725 11 02
161
POWER WINDOW W MOTOR , EXHAUST STOCK OF OLD PART NUMBER FIRST
161
WINDOW REGULATOR , Replaced By: A0007203446
164
ELECTRIC MOTOR WITH TRANSMISSION TO A 628 820 00 42
167
HEXAGON HEAD BOLT
170
BRACKET BOTTOM
173
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
173
SCREW , Replaced By: N914146006102
176
RIVETED NUT
182
BRACKET PROTECTIVE HOSE
185
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
188
SWITCH
191
BOLT W HEX. SOCKET
194
NUT PLUG SOCKET TO BRACKET,5 906887
197
WASHER DIA., 3,2MM
999
FASTENER BUTTON FRONT DOOR
999
TWO-COMPONENT ADHESIVE
999
SEALANT
