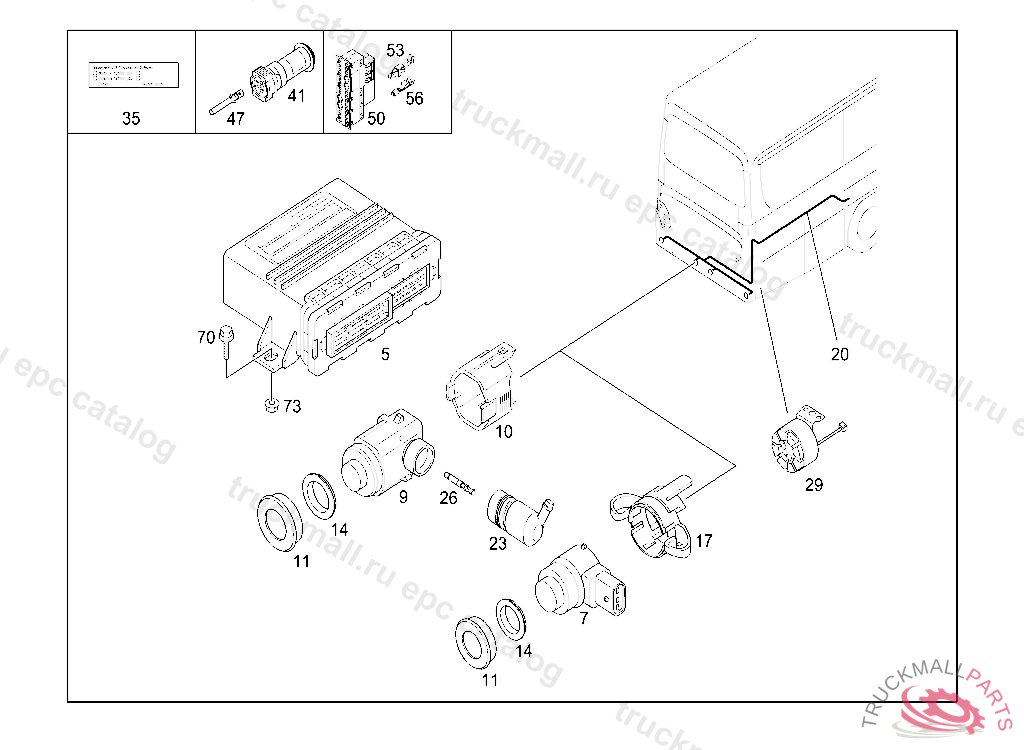

Поз.
Артикул
Описание
5
CONTROL UNIT PARKING PILOT URF7
5
CONTROL UNIT BACK-UP AID
7
DISTANCE SENSORPTS4.0
9
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION
10
HOUSING INSTALLATION KIT CONTAINS 4 PIECES
11
SPACER RING
14
SPACER RING INSTALLATION KIT CONTAINS 4 PIECES
14
BORDER RING
17
SENSOR HOUSINGURF6PTS4
20
CABLE HARNESS BACK-UP AID
20
ELECTRICAL WIRING HARNESS BACK-UP AID
23
PLUG SOCKET COMPLETE
26
ROUND PIN BUSHING1 MM
29
BUZZER ACOUSTIC BACKUP SIGNAL, VERSION FORAUSTRIA/HUNGARY
29
WARNING BUZZER AUDIBLE REVERSING SIGNAL
29
BUZZER AUDIBLE REVERSING SIGNAL, Replaced By: A0008223330
35
STICKER BACK-UP AID URF7
41
BELL HOUSING BIPOLAR
47
PLUG
50
PLUG SOCKET 28-POLE
53
CONTACT SPRING0,5 - 1,0 MM2
53
CONTACT SPRING
56
CONTACT SPRING WITH DETENT 0.35-0.5 MM2
70
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
70
HEXAGON HEAD BOLT
73
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
73
NUT , Replaced By: N913023006001
