Mercedes A0009872627 - Трубка пластиковая 6 X 4

S 416 HDH MODELLPFLEGE 629.625

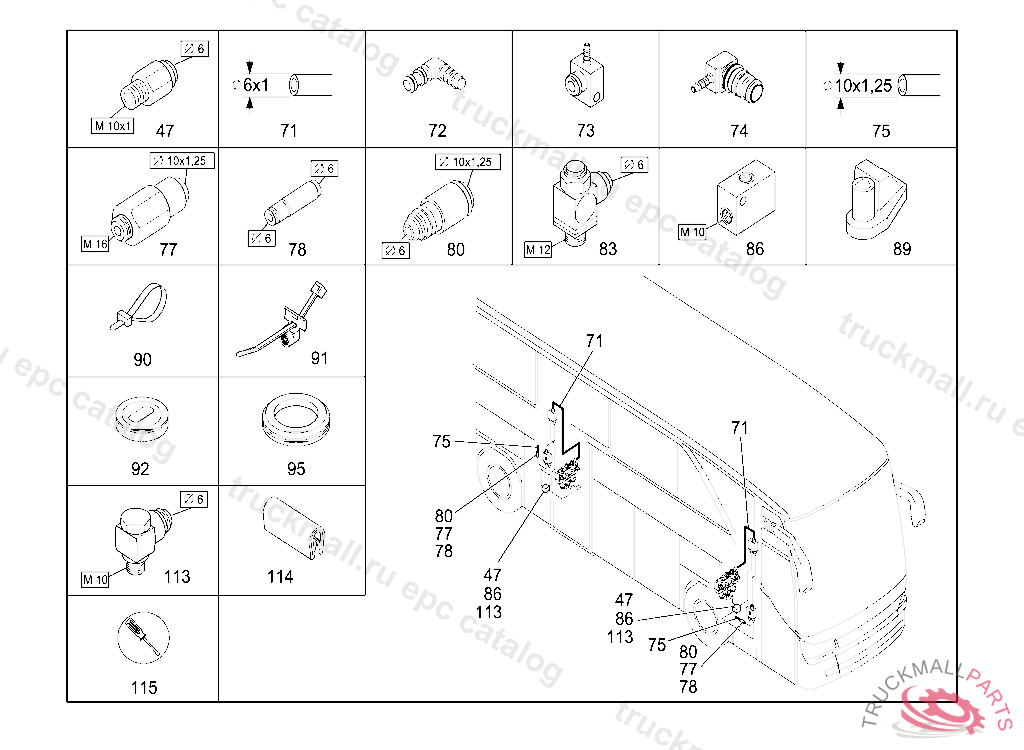

42 BRAKES - 010 COMPRESSED AIR LINES IL. 1

Поз.
Артикул
Описание
47
A0039905768
FITTING
71
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
72
A0049977889
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
73
A6459901278
CONNECTOR
74
A0039977289
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM, VOSS 232
75
A0009873927
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
77
A0059974036
VALVE
78
A0007605278
VALVED6 MM
80
A0009974475
THREADED UNION
83
A0039907068
FITTING
86
A0008050078
VALVE SHUTTLE VALVE
89
A0109883378
RETAINING CLIP
90
A0029972490
CABLE TIE310X5MM
90
A0029972390
CABLE TIE , Replaced By: A0049971890
90
A0019978390
LOOM TIE LINE MOUNTING 280 MM
91
A2105461943
CABLE TIE. BRACKET ELECTRIC CABLE TO ALTERNATOR 151 MM
92
A0009876441
GROMMET
95
A0099978581
GROMMET
113
A0039906768
FITTING
114
A0008210088
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
115
A0055840238
ADHESIVE LABEL
