Mercedes A0048306084 - Клапан расширительный кондиционера

S 416 HDH MODELLPFLEGE 629.625

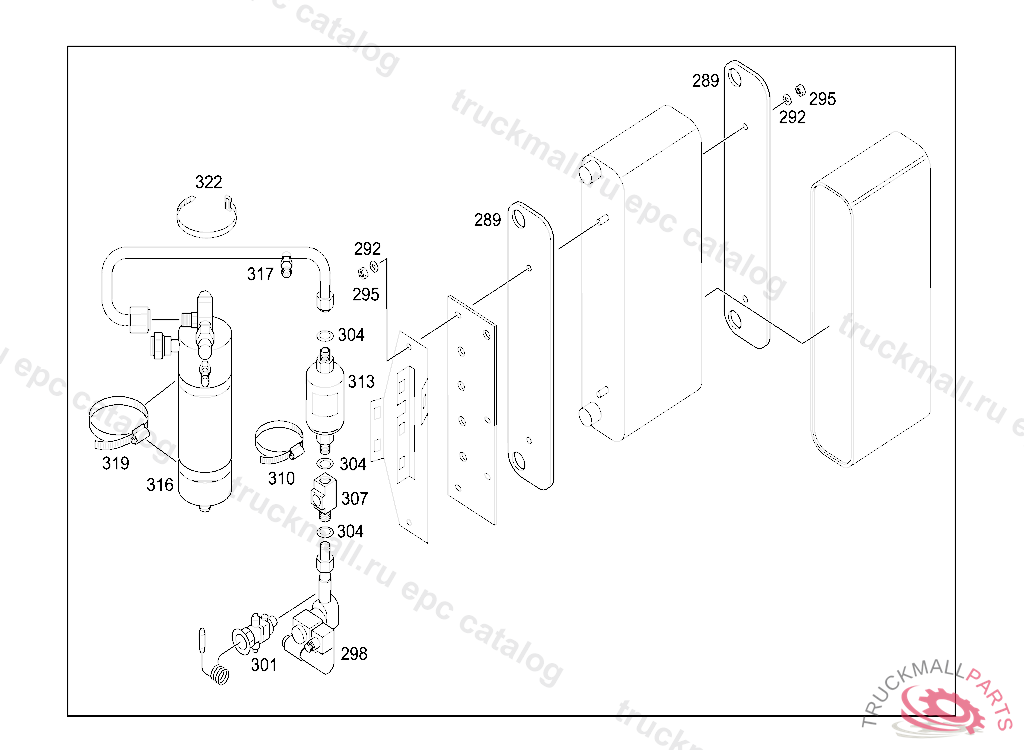

83 HEATING AND VENTILATION - 090 AIR CONDITIONER IL. 5

Поз.
Артикул
Описание
289
A0008351081
INSULATION HEAT EXCHANGER 10MM
292
N000125008445
WASHER PUMP TO CONSOLE
295
N913023008003
NUT HORN TO BRACKET M8
298
A0098301815
REFRIGERANT LINE WITH SOLENOID VALVE
298
A0038301284
VALVE , Replaced By: A0098301815
301
A0038300384
VALVE , Replaced By: A0048306084
301
A0048306084
EXPANSION VALVE
304
A6278350198
SEALNW 13
307
A0008350861
SIGHT GLASSHANSA
310
N000000000674
CLAMP HOSE 70-90X13 MM
313
A0018303958
EVAPORATOR7/8"
316
A0008304183
REFRIGERANT COLLECTOR
316
A0008303283
TANK REFRIGERANT, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)04/2002
316
A0008355571
TANK REFRIGERANT, Replaced By: A0008304183
317
A0078308615
PIPELINE LESS VALVE, Replaced By: A0088306915
317
A0088306915
PIPELINE WITH PRESSURE RELIEF VALVE
319
N000000000645
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
322
A0079971790
LOOM TIE
999
A0009894784
INSULATING TAPE REFRIGERANT 2X60MM
999
A6276110318
RAIL
