Mercedes
›
BUS
›
S 416 HDH MODELLPFLEGE
›
629.625
›
32 SPRINGS AND SUSPENSION
›
545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 1
Mercedes A6293231900 - АМОРТИЗАТОР ПЕРЕДНИЙ
S 416 HDH MODELLPFLEGE 629.625

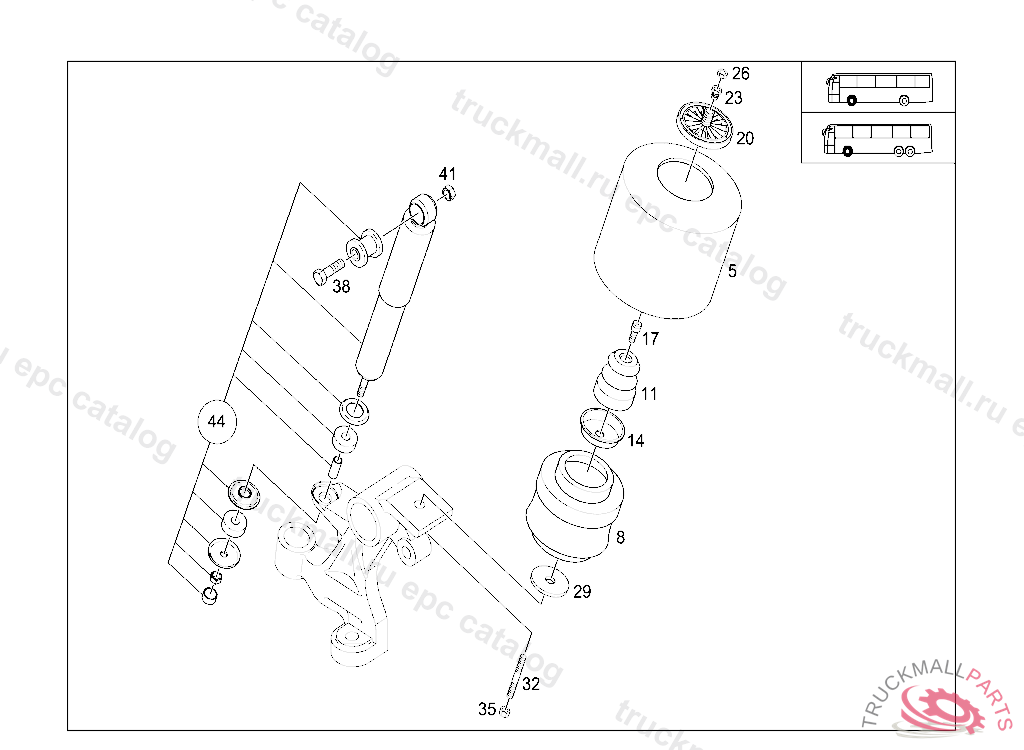

32 SPRINGS AND SUSPENSION - 545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 1
Поз.
Артикул
Описание
5
A6283230092
BELLOWS. BOOT
8
A6283200018
AIR BELLOW PISTON123 MM
11
A6283210006
HELPER SPRINGHOEHE 80, Replaced By: A6283210007
14
A6283220087
CENTERING DISCHOEHE 23
17
A0003210071
SCREW
20
A6283200535
PLATE
23
A0009974734
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
26
A0029909550
NUTM24X1.5-14H
29
A6293280135
PLATED 80X15
32
N000000005423
STUD BOLT RETARDER M16X1.5X70
32
N000000002476
SCREWM 16X1.5X70-10.9, Replaced By: N000000005423
35
N000000005462
NUT. SCREW ADJUSTER STOP
38
N000000005576
HEXAGON HEAD BOLT. SCREWM 20X1,5X110
41
N913023020001
NUT TRAILER COUPLING TO REAR CROSS MEMBER
41
N000000005740
NUT SHOCK ABSORBER TO BRACKET M20X1.5
44
A6293231000
SHOCK ABSORBER COMPLETE, Replaced By: A6293231900
44
A6293231900
SHOCK ABSORBER COMPLETE
