Mercedes A0009881643 - Замок с личинкой

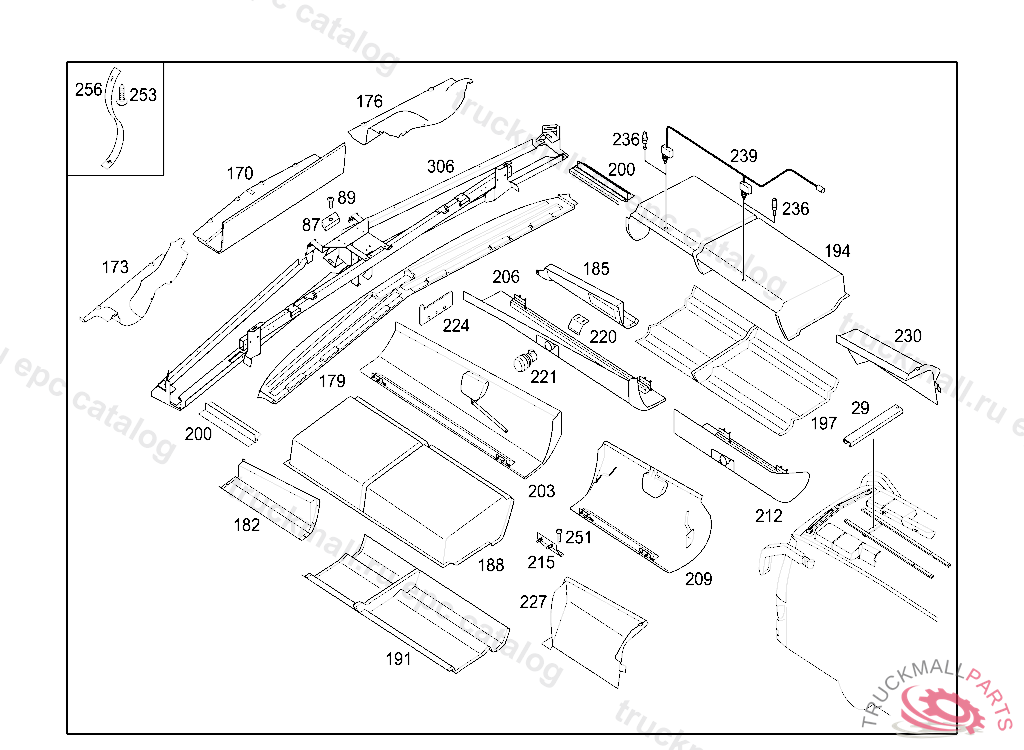

S 417 HDH MODELLPFLEGE 629.627
69 COVERING AND LINING - 090 ROOF INTERIOR PANELLING IL. 3
Поз.
Артикул
Описание
29
A6296951435
RAIL
87
A0009960434
SLIDING NUTM8
89
N000000001427
HEXALOBULAR BOLT EXPANSION TANK M8X20
170
A6296951900
PANELLING
173
A6296951700
PANELLING
176
A6296951800
PANELLING
179
A6296952000
PANELLING
182
A6296951630
COVERING
182
A6296952030
COVERING
182
A6296951830
COVERING
182
A6296950530
COVERING
185
A6296955730
COVER FRAME
185
A6296950630
COVERING
185
A6296952130
COVERING
188
A6296950069
PIGEONHOLE
191
A6296950269
PIGEONHOLE
194
A6296950169
PIGEONHOLE
197
A6296950369
PIGEONHOLE
200
A6296952035
RAIL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
203
A6296950264
FLAP
206
A6296950364
FLAP
209
A6296950464
FLAP
212
A6296950564
FLAP
215
A6296900066
HINGE
220
A6296950188
FASTENER
221
A0009881543
LOCK SNAP LOCK
221
A0009881643
LOCK
224
A6296951230
COVERING CLOCK
227
A6296954100
PANELLING
230
A6296954200
PANELLING
236
A0008226006
SWITCH RED
236
Q7314087000
SWITCH BLACK
239
A0128200910
SWITCH WITH CABLE HARNESS
251
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
253
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
256
A0019833813
BAND
306
A6296901114
BRACKET
999
A0009876945
CAP
999
A0009903246
WASHER
999
A0019904836
SHEET METAL SCREW. SCREWST25X 6 T20
999
A0079890271
ADHESIVE
999
A6296952214
BRACKET
999
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
999
N000000000482
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
999
N000000003120
HEXALOBULAR BOLTM8X16
999
N000000003250
WASHER BRACKET TO CAB REAR PANEL
