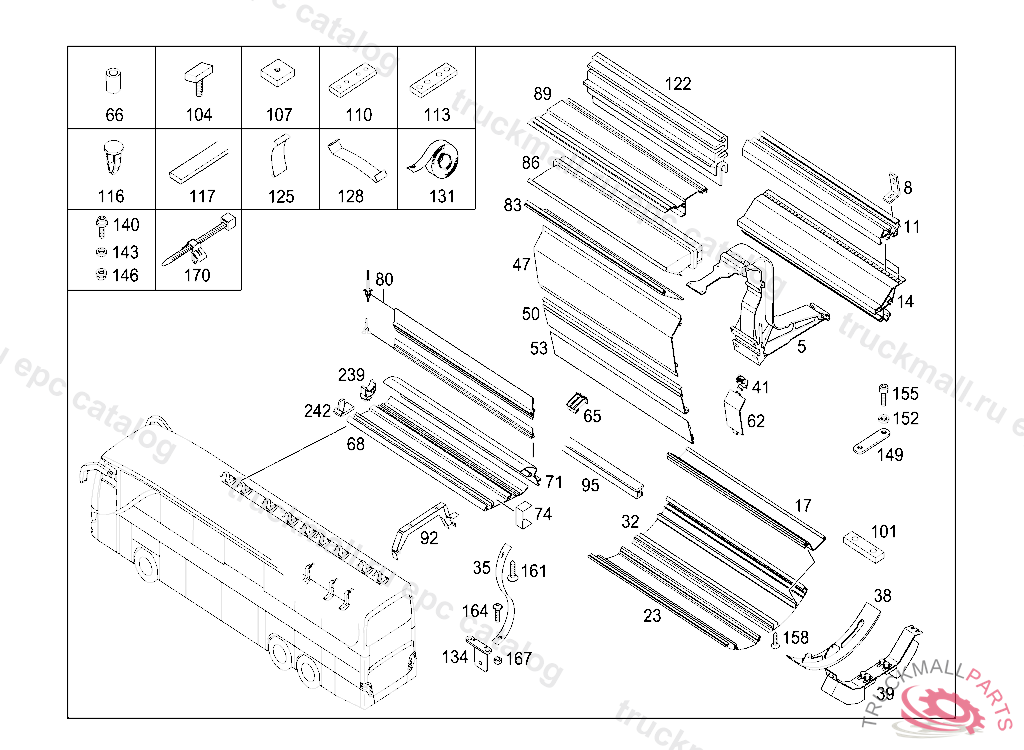

Поз.
Артикул
Описание
5
BRACKET
8
BRACKET
11
RAIL
14
RAIL CENTRAL, TO BE ADAPTED DURING ASSEMBLY
14
RAIL REAR LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
14
RAIL FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
14
RAIL FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
17
RAIL6000MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
RAIL CLIPPED, SERVICE SIDE, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298367927
23
RAIL CLIPPED, SERVICE SIDE, TO IDENT-NO. WKK 629410 13 000178 TO IDENT-NO. WKK 629411 13 000494 TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
32
RAIL
32
RAIL CLIPPED, VISUAL SIDE, TO BE ADAPTED DURING ASSEMBLY DETERMINE COVER FABRIC VIA VEDOC "NFC 5117", Replaced By: A6298367627
35
BAND
35
CHECK STRAP
38
COVERING
39
SEAL
41
FASTENER
47
PANELLING REAR LEFT AND RIGHT 6000MM
50
RAIL CENTRAL RIGHT, TO BE ADAPTED DURING ASSEMBLY
50
RAIL CENTRAL LEFT 3241MM
50
RAIL FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
50
RAIL REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
50
RAIL FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
50
RAIL REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
53
LEDGE , TO BE ADAPTED DURING ASSEMBLY
62
COVERING
65
BRACKET
68
RAIL4300MM
71
RAIL4300MM
74
BRACKET
80
COVERING
83
RAIL3000MM
83
RAIL3000MM
86
PIPE SOCKET
89
RAIL RIGHT CENTRAL 3239 MM, TO BE ADAPTED DURING ASSEMBLY
89
RAIL REAR LEFT 4743 MM, TO BE ADAPTED DURING ASSEMBLY
89
RAIL FRONT LEFT 2342 MM, TO BE ADAPTED DURING ASSEMBLY
89
RAIL LEFT CENTRAL 3239 MM, TO BE ADAPTED DURING ASSEMBLY
89
RAIL RIGHT REAR 4743 MM, TO BE ADAPTED DURING ASSEMBLY
89
RAIL FRONT RIGHT 2342 MM, TO BE ADAPTED DURING ASSEMBLY
92
REINFORCEMENT
95
SEAL7MM, TO BE ADAPTED DURING ASSEMBLY
95
PLASTIC SECTION SEAL BRUSH, TO BE ADAPTED DURING ASSEMBLY
101
CONNECTOR
104
T-SCREW
104
SCREW F CRANKCASEM8X30
104
T-SCREWM8X30
104
T-SCREWM 6X16
107
NUTM8
107
SLIDING NUTM8
110
SHACKLE
113
SHACKLE
116
LOCK
117
FOAM PLASTICS35X5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
117
INSULATION2X12MM/L2000MM
122
RAIL REAR LEFT AND RIGHT 6000MM
125
COVERING
128
COVERING
131
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
131
SEAL10X10MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
134
BRACKET
140
SCREW MOUNTING OF INSTRUMENT PANEL
143
WASHER COMPRESSED AIR LINE TO BRACKET
143
WASHER BRACKET TO CAB REAR PANEL
146
NUT HORN TO BRACKET M8
146
HEXAGON NUTM5
149
PLATE. THREADED PLATE
152
WASHER BRACKET TO BATTERY CASE BRACKET
152
WASHER COMPRESSED AIR LINE TO BRACKET
155
SCREW. HEXALOBULAR BOLTM5X8
158
TAPPING SCREW CONTROL UNIT TO FIRE WALL
161
TAPPING SCREW4,2X16
164
SCREWM 5 X 10
167
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
167
NUT
170
BRACKET
239
BRACKET
242
BRACKET
